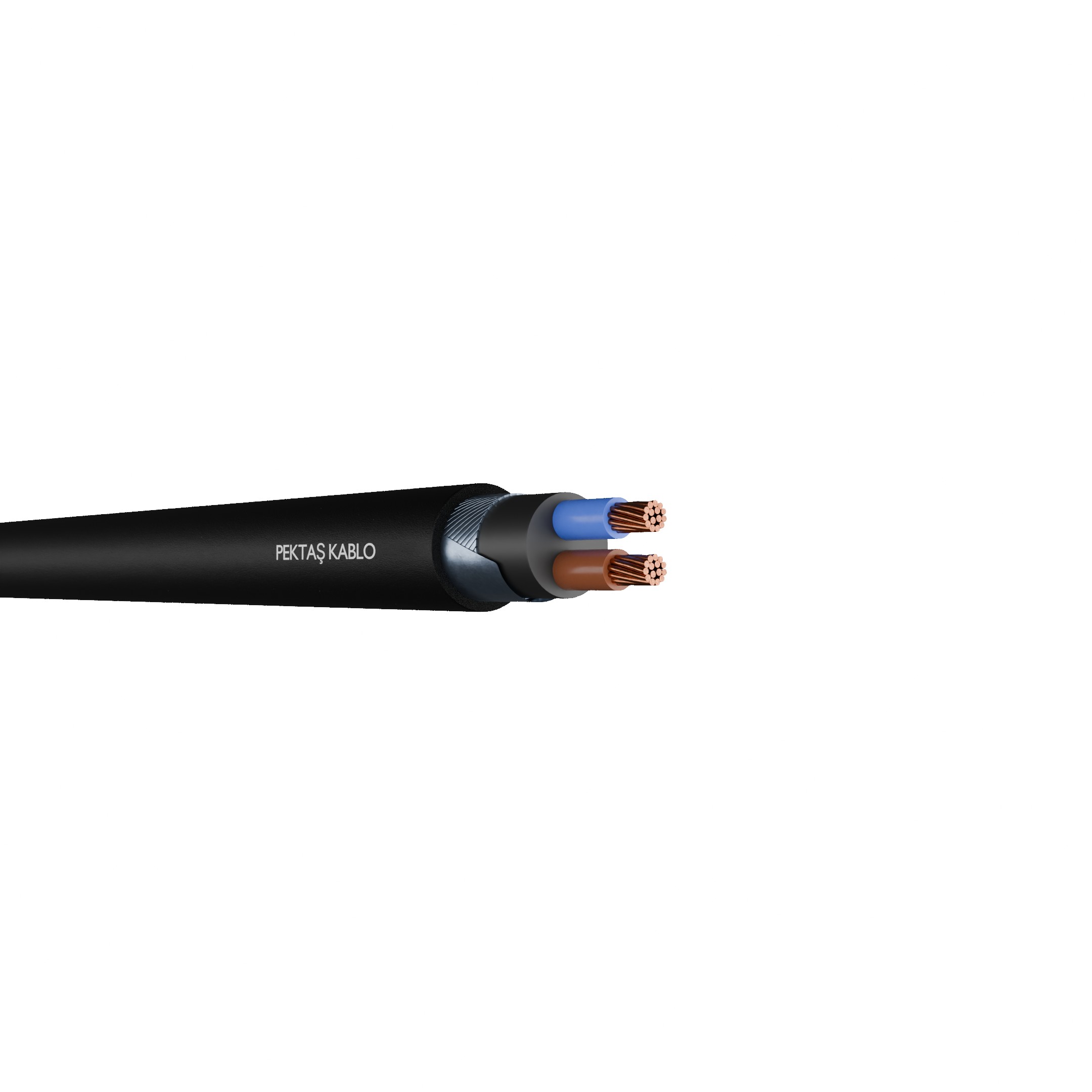

YVSV (NYFGY) / YVZ3V (NYFGBY)

Thanks to the armour composed of galvanized flat steel wire and galvanized steel tape, it is used as a network, lighting and power cable, outdoors, internally, underground and in cable ducts where continuous mechanical stresses exist.

Max. operating temperature

70 °C

Max. short circuit temperature

160 °C

Min. bending radius

15 x D

Rated voltage Uo/U

0.6/1 kV

AC test voltage

3.5 kV

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Polyvinyl chloride (PVC)
3- Filler: Polyvinyl chloride (PVC)
4- Armour: Galvanized flat steel wire and galvanized steel tape
5- Outer Sheath: Polyvinyl chloride (PVC)

Applications

Technical Data - YVSV (NYFGY) / YVZ3V (NYFGBY) Cable

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Current Carrying Capacity (In Earth)		Current Carrying Capacity (In Air)
Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Flat	Trefoil	Flat	Trefoil
2x10	21,0	993	1,83	90		66
2x16	22,6	1196	1,15	116		89
2x25	25,8	1587	0,727	150		118
2x35	28,0	1908	0,524	181		143
2x50	31,8	2493	0,387	215		176
2x70	35,0	3129	0,268	264		224
2x95	39,6	4015	0,193	317		271
3x10	20,3	1017	1,83	75		60
3x16	22,2	1281	1,15	98		80
3x25	25,7	1753	0,727	128		106
3x35	28,5	2213	0,524	157		131
3x50	32,6	2910	0,387	185		159
3x70	36,2	3764	0,268	228		202
3x95	41,1	4907	0,193	275		244
3x120	45,2	5979	0,153	313		282
3x150	49,0	7008	0,124	353		324
3x185	54,6	8600	0,0991	399		371
3x240	62,5	11268	0,0754	464		436
3x16+10	23,7	1435	1,15/1,83	98		80
3x25+16	27,3	1956	0,727/1,15	128		106
3x35+16	29,5	2362	0,524/1,15	157		131
3x50+25	33,8	3130	0,387/0,727	185		159
3x70+35	37,8	4095	0,268/0,524	228		202
3x95+50	42,9	5347	0,193/0,387	275		244
3x120+70	47,5	6639	0,153/0,268	313		282
3x150+70	50,6	7694	0,124/0,268	353		324
3x185+95	56,4	9670	0,0991/0,193	399		371
3x240+120	63,6	12238	0,0754/0,153	464		436
4x10	21,8	1102	1,83	75		60
4x16	24,0	1433	1,15	98		80
4x25	28,0	1993	0,727	128		106
4x35	31,0	2639	0,524	157		131
4x50	35,5	3478	0,387	185		159
4x70	39,5	4551	0,268	228		202
4x95	45,0	5973	0,193	275		244
4x120	49,7	7332	0,153	313		282
4x150	53,7	8755	0,124	353		324
4x185	59,7	10705	0,0991	399		371
4x240	68,6	14104	0,0754	464		436
4x300	80,0	18777	0,0601	524		481
5x10	24,3	1462	1,83	75		60
5x16	26,0	1847	1,15	98		80
5x25	31,2	2662	0,727	128		106
5x35	34,3	3354	0,524	157		131
5x50	39,3	4435	0,387	185		159
