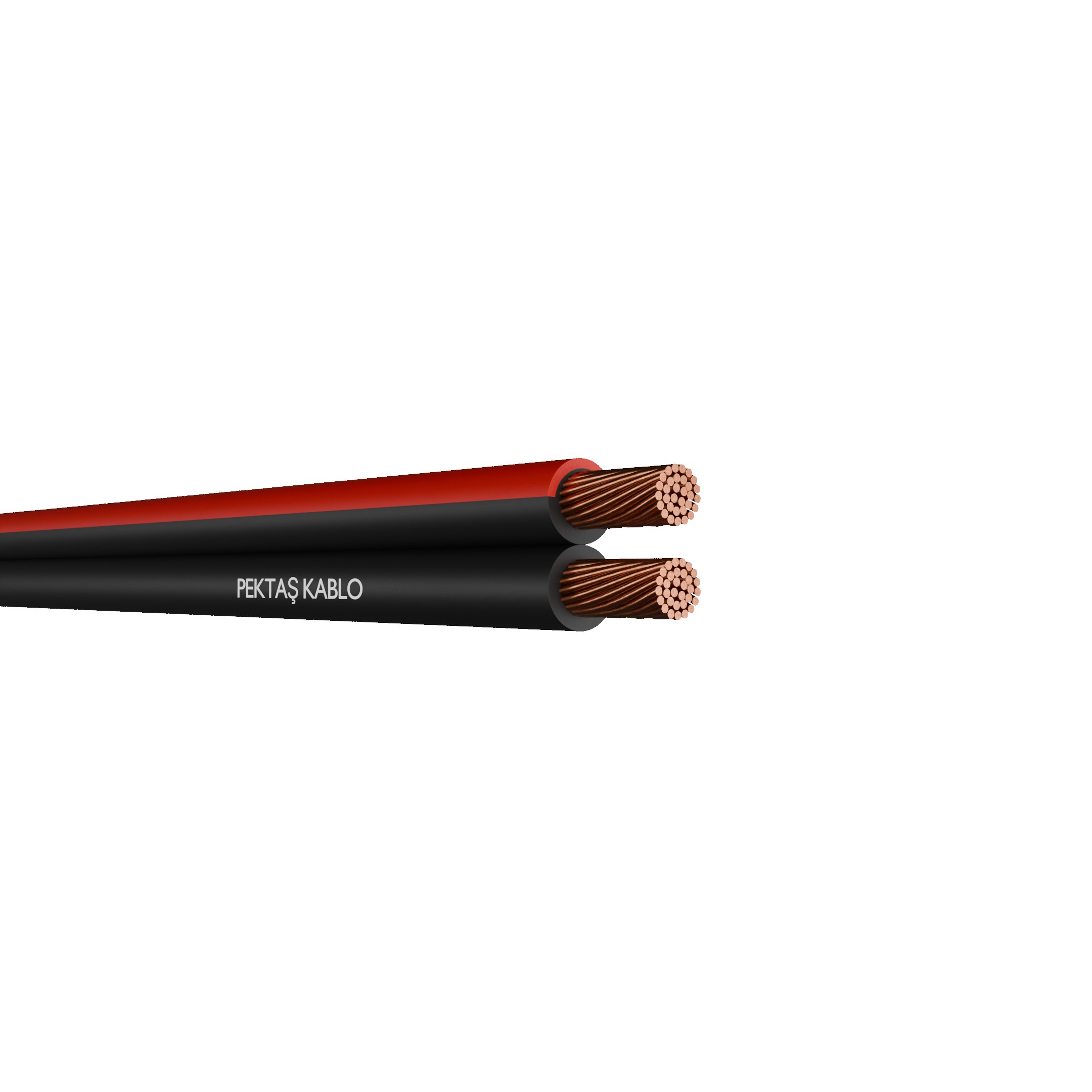

A flat cable to be used with portable electrical appliances used in mobile devices in dry areas.
| Nominal Cross Section mm² | Overall Diameter mm | Net Weight kg/km | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|
| H03VH-h (300/300 V) | ||||
| 2x0.50 | 2.5 x 5.0 | 22 | 39.0 | 3 |
| 2x0.75 | 2.7 x 5.5 | 29 | 26.0 | 6 |
| H03VH-h (300/500 V) | ||||
| 2x0.75 | 3.1 x 6.4 | 36 | 26.0 | 6 |
| 2x1 | 3.4 x 7.0 | 46 | 19.5 | 10 |
| 2x1.5 | 3.8 x 7.5 | 56 | 13.3 | 16 |
| 2x2.5 | 4.5 x 9.2 | 80 | 7.98 | 25 |
| 2x4 | 5.3 x 10.8 | 142 | 4.95 | 40 |
