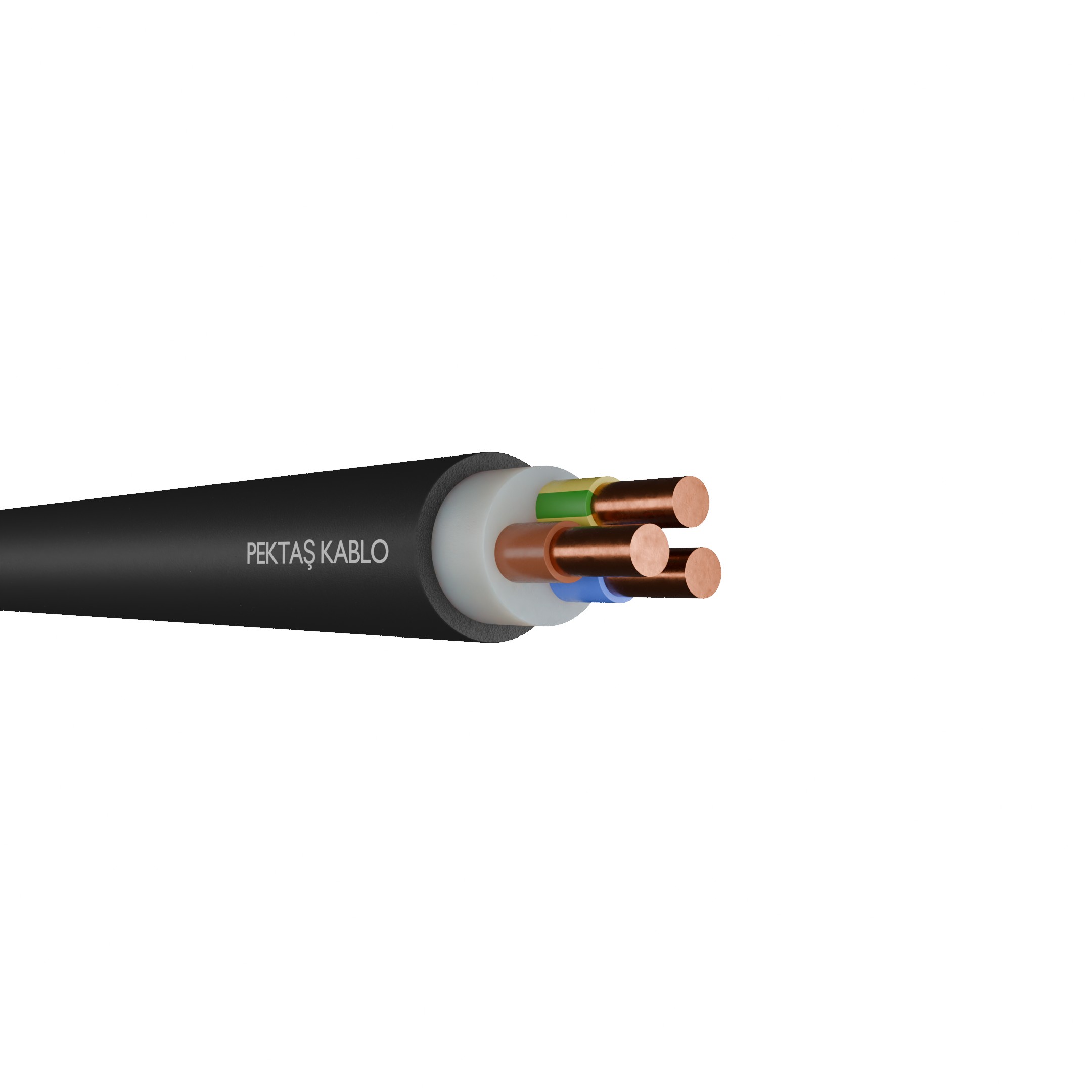

XVB-F2

Name: XVB-F2
Brand: Pektaş Kablo
SKU: xvb-f2

It is used in buildings with high human density, hospitals, shopping malls, hotels, schools, etc. It does not propagate fire, does not create thick smoke, and does not create an environment suitable for corrosion during a fire.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

3.5 kV

Min. bending radius

12 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

Flame propagation test on bunched cables

EN 60332-3-24

Corrosive gas test

EN 60754-2

Smoke density test

EN 61034-2

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Halogen-free material
4- Outer Sheath: Halogen-free lshz compound

Applications

Technical Data - XVB-F2

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Current Carrying Capacity (In Earth)		Current Carrying Capacity (In Air)
Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Flat	Trefoil	Flat	Trefoil
1x1,5	6,2	54	12,1	-		-
1x2,5	6,5	66	7,41	-		-
1x4	7,0	84	4,61	66	55	56	44
1x6	7,5	106	3,08	82	68	71	57
1x10	8,9	157	1,83	109	90	96	77
1x16	9,8	218	1,15	139	115	128	102
1x25	11,4	320	0,727	179	149	173	139
1x35	12,5	418	0,524	213	178	212	170
1x50	14,2	555	0,387	251	211	258	208
1x70	15,9	764	0,268	307	259	328	265
1x95	17,8	1019	0,193	366	310	404	329
1x120	19,7	1269	0,153	416	352	471	381
1x150	21,4	1548	0,124	465	396	541	438
1x185	23,4	1907	0,0991	526	449	626	507
1x240	26,6	2471	0,0754	610	521	749	606
1x300	28,8	3124	0,0601	689	587	864	697
3x1,5	9,4	130	12,10	31		24
3x2,5	10,3	170	7,41	40		32
3x4	11,2	227	4,61	52		42
3x6	12,6	306	3,08	64		53
3x10	14,6	461	1,83	86		74
3x16	17,6	685	1,15	112		98
3x25	20,9	1025	0,727	145		133
3x35	23,4	1361	0,524	174		162
4x1,5	10,2	157	12,1	31		24
4x2,5	11,1	205	7,41	40		32
4x4	12,2	280	4,61	52		42
4x6	13,7	380	3,08	64		53
4x10	15,8	573	1,83	86		74
4x16	19,1	855	1,15	112		98
4x25	22,8	1291	0,727	145		133
4x35	26,1	1756	0,524	174		162
5x1,5	11,5	199	12,1	31		24
5x2,5	12,6	262	7,41	40		32
5x4	13,8	357	4,61	52		42
5x6	15,1	468	3,08	64		53
5x10	18,4	744	1,83	86		74
5x16	21,4	1075	1,15	112		98
5x25	25,6	1626	0,727	145		133
