Installation in surface mounted or embedded conduits or similar closed systems. Low level of smoke emission and corrosive gases in case of fire.
| Nominal Cross Section mm² | Approx. Overall Diameter mm | Approx. Net Weight kg/km | Conductor DC Resistance Max. ohm/km(20°C) | Current Carrying Capacity in Pipe (A) | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|---|
| H05Z-K (300/500 V) / 2491B | |||||
| 0,50 | 2,1 | 9 | 39,0 | - | - |
| 0,75 | 2,3 | 12 | 26,0 | - | - |
| 1 | 2,5 | 13 | 19,5 | - | - |

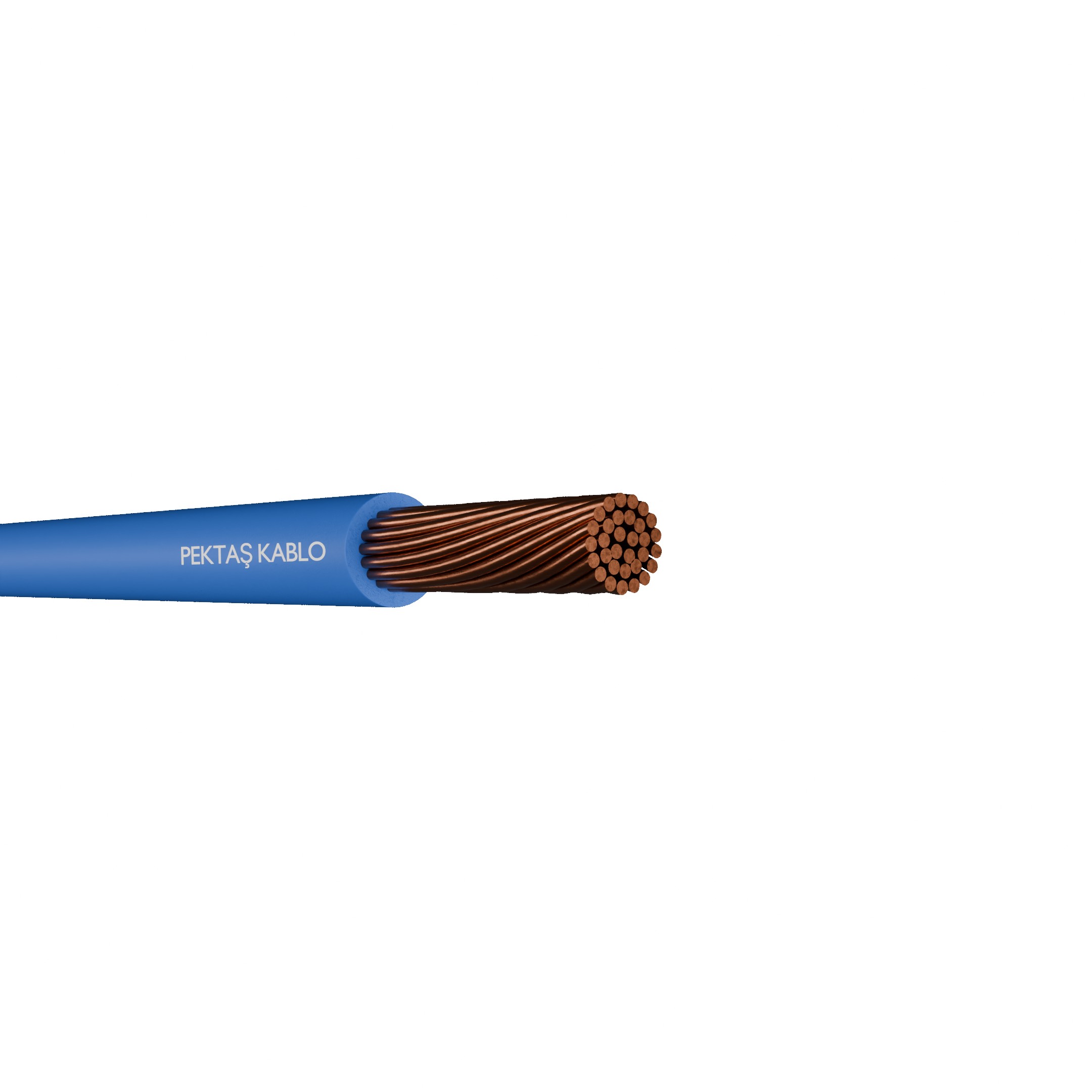

| H07Z-K (450/750 V) / 6491B | |||||
| 1,5 | 3,0 | 19 | 13,3 | 21,9 | - |
| 2,5 | 3,7 | 30 | 7,98 | 29,5 | - |
| 4 | 4,5 | 44 | 4,95 | 39,9 | - |
| 6 | 5,5 | 61 | 3,30 | 51,3 | - |
| 10 | 6,5 | 105 | 1,91 | 71,3 | - |
| 16 | 7,5 | 158 | 1,21 | 95 | - |
| 25 | 10,0 | 253 | 0,780 | 129 | 156,2 |
| 35 | 11,0 | 345 | 0,554 | 159,1 | 194 |
| 50 | 13,0 | 495 | 0,386 | 192,1 | 234,7 |
| 70 | 15,0 | 670 | 0,272 | 245,4 | 300,7 |
| 95 | 17,0 | 905 | 0,206 | 296,8 | 365,7 |
| 120 | 19,0 | 1132 | 0,161 | 343,4 | 423,9 |
| 150 | 21,0 | 1415 | 0,129 | 381,2 | 488,9 |
| 185 | 23,3 | 1720 | 0,106 | 435,5 | 557,8 |
| 240 | 27,0 | 2255 | 0,0801 | 512,2 | 658,6 |
