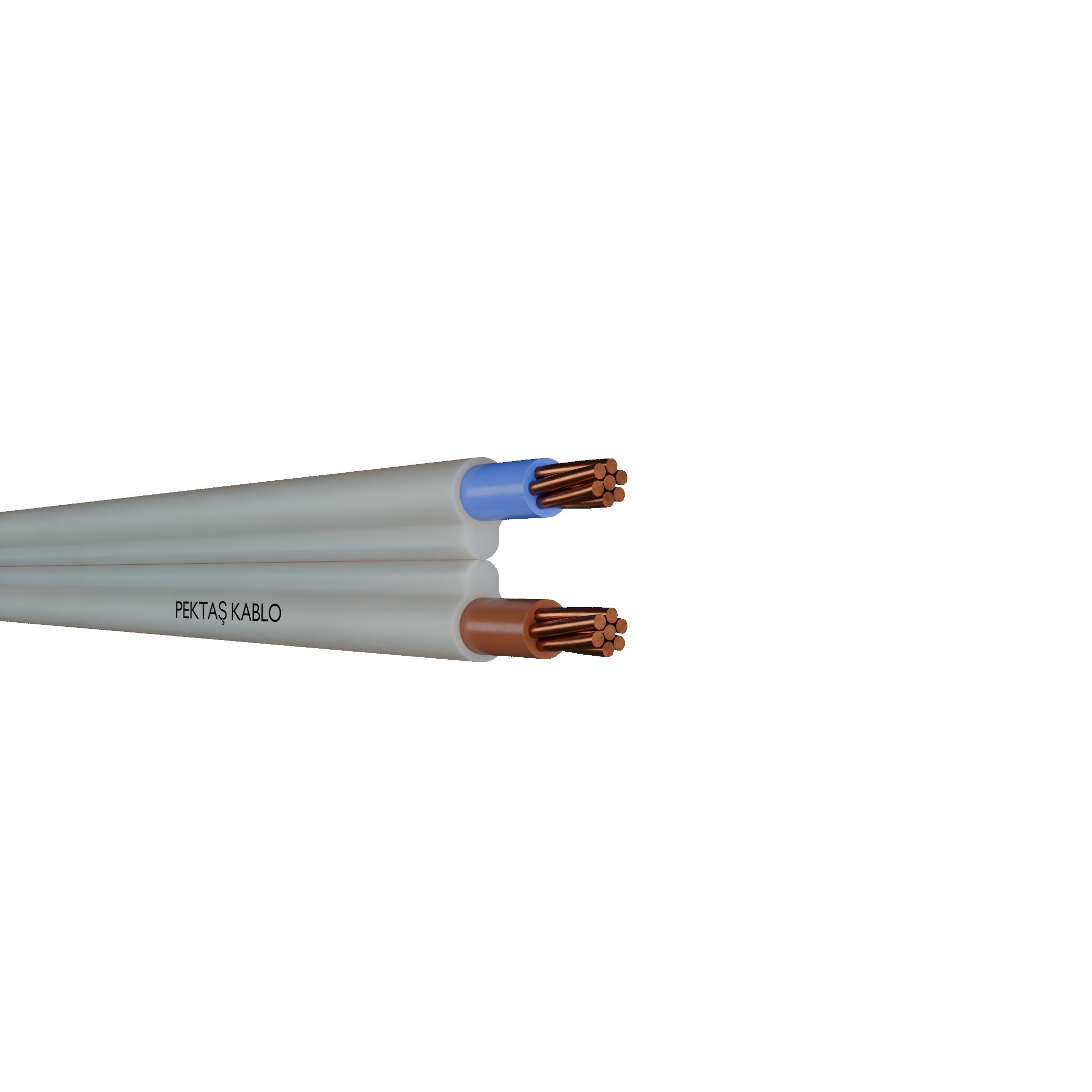

PVC Insulated Flat Cable for Fixed Installations - Pektas Cable
FLAT AND CIRCULAR CABLES

NYIFY-U

Suitable for dry and humid areas. All type of factory, warehouse and depots where there is fire and explosion threat. Not suitable for underground.
Max. operating temperature
70 °C
Max. short circuit temperature
160 °C
AC test voltage
2kV
Min. bending radius
8 x D
Rated voltage Uo/U
300/500 V
Flame propagation test on single cable
EN 60332-1
Sensitivity
Lead free

Construction

  • 1- Solid or stranded copper (Class 1 or Class 2)
  • 2- Polyvinyl chloride
  • 3- Polyvinyl chloride

Applications

Suitable for dry and humid areas. All type of factory, warehouse and depots where there is fire and explosion threat. Not suitable for underground. Used in fixed installations laying in conduit on under plaster.

Technical Data - NYIFY-U (300/500 V) / Cu/PVC/PVC

Nominal Cross Section mm²Overall Diameter mmNet Weight kg/kmConductor DC Resistance at (20°C) max. ohm/kmCurrent Carrying Capacity in Air (A)
2x13.6 x 9.25118.113
2x1.53.9 x 10.57912.116
2x2.54.7 x 12.0957.4121
2x45.3 x 141444.6127
3x13.6 x 14.87618.113
3x1.53.85 x 17.510912.116
3x2.54.75 x 19.51417.4121
3x45.3 x 23.01974.6127
