RV-K Unarmored Power Cable - Pektas Cable
UNARMOURED ENERGY CABLES

RV-K

It is used outdoors, indoors, underground and in cable ducts where there are no severe mechanical stresses. Flexible construction provides practicality during usage.
Max. operating temperature
90 °C
Max. short circuit temperature
250 °C
AC test voltage
3.5 kV
Min. bending radius
5 x D
Rated voltage Uo/U
0.6/1 kV
Flame propagation test on single cable
EN 60332-1-2

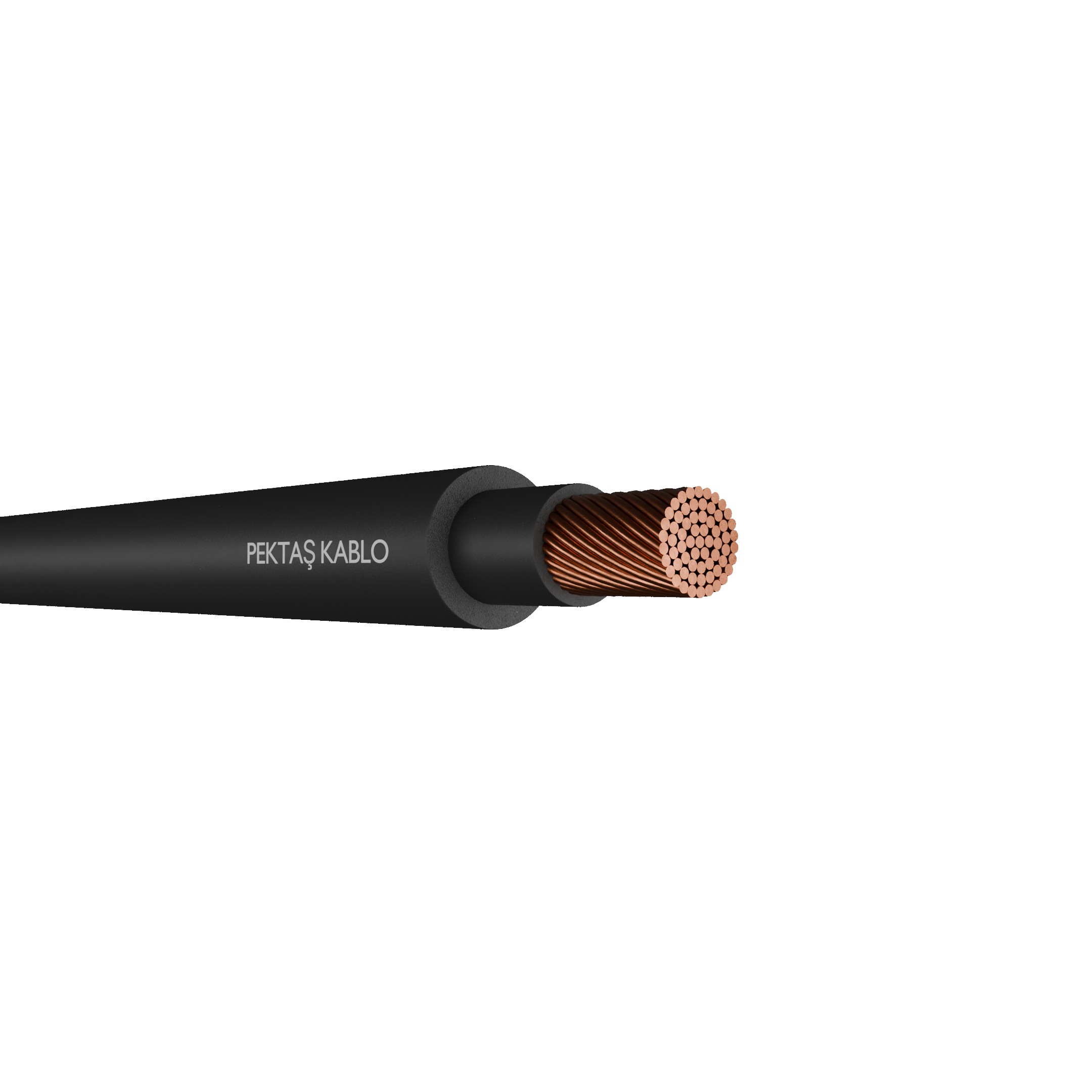

Construction

  • 1- Conductor: Flexible stranded copper conductor (Class 5)
  • 2- Insulation: Cross-linked polyethylene (XLPE)
  • 3- Filler: Polyvinyl chloride (PVC) (For multi-core cables)
  • 4- Outer Sheath: Polyvinyl chloride (PVC)

Applications

It is used outdoors, indoors, underground and in cable ducts where there are no severe mechanical stresses. Flexible construction provides practicality during usage.

Technical Data - RV-K

Nominal Cross Section mm²Overall Diameter mmNet Weight kg/kmConductor DC Resistance at (20°C) Max. ohm/kmCurrent Carrying Capacity in Ground (A)Current Carrying Capacity in Air (A)
1x2,56,2547,982929
1x46,7704,956640
1x67,3903,308253
1x108,21331,9110974
1x169,21891,21139101
1x2511,02840,780179135
1x3512,13810,554213169
1x5013,085170,386251207
1x7015,77120,272307268
1x9517,69230,206366328
1x12019,211650,161416383
1x15021,514460,129465444
1x18523,917480,106526510
1x24026,922800,0801610607
1x30029,628290,0641927697
2x1,58,409813,33726
2x2,59,701377,984936
2x410,801824,956449
2x612,802583,307963
2x1015,003791,9110686
2x1618,705361,21137115
3x1,58,9011613,33124
3x2,510,301637,984032
3x411,502214,955242
3x613,603143,306453
3x41017,205171,918674
3x1619,907421,2111298
