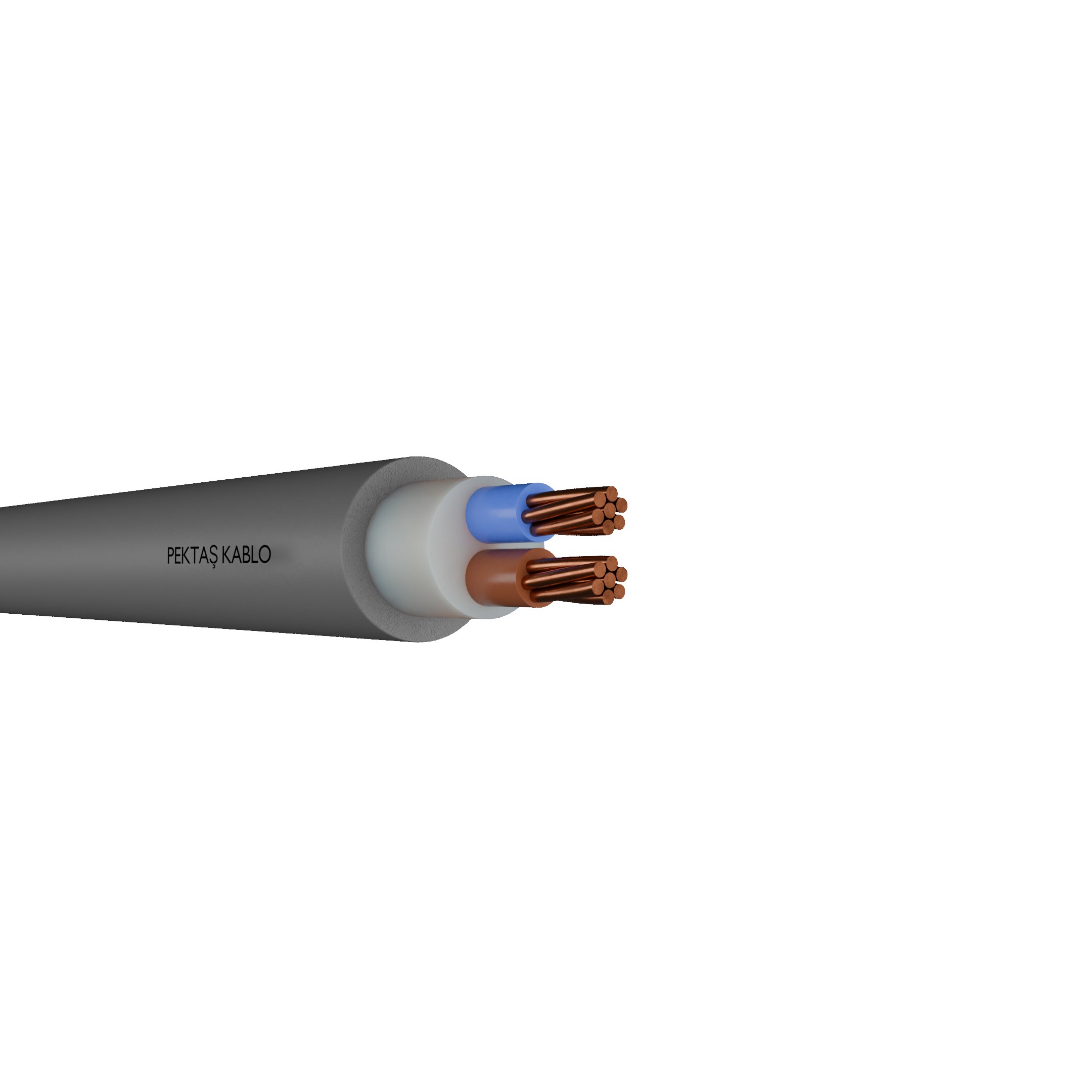

NYM.jpg "Pektas Cable Multi-Core Installation Cable")
Used in dry humid areas that there are no mechanical compulsion, under and on the plaster.
| Nominal Cross Section mm² | Overall Diameter mm | Net Weight kg/km | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|
| 2x1.5 | 8.8 | 121 | 12.1 | 22 |
| 2x2.5 | 10.0 | 163 | 7.41 | 30 |
| 2x4 | 10.9 | 212 | 4.61 | 40 |
| 2x6 | 11.8 | 270 | 3.08 | 51 |
| 2x10 | 15.7 | 498 | 1.83 | 70 |
| 2x16 | 18.4 | 698 | 1.15 | 94 |
| 2x25 | 20.8 | 1001 | 0.727 | 119 |
| 2x35 | 23.4 | 1320 | 0.524 | 148 |
| 3x1.5 | 8.9 | 134 | 12.1 | 16.5 |
| 3x2.5 | 10.5 | 194 | 7.41 | 23 |
| 3x4 | 11.4 | 254 | 4.61 | 30 |
| 3x6 | 12.9 | 343 | 3.08 | 38 |
| 3x10 | 16.4 | 605 | 1.83 | 52 |
| 3x16 | 18.7 | 858 | 1.15 | 69 |
| 3x25 | 22.2 | 1156 | 0.727 | 90 |
| 3x35 | 24.5 | 1500 | 0.524 | 111 |
| 4x1.5 | 9.9 | 168 | 12.1 | 16.5 |
| 4x2.5 | 11.3 | 233 | 7.41 | 23 |
| 4x4 | 13.3 | 333 | 4.61 | 30 |
| 4x6 | 14.2 | 430 | 3.08 | 38 |
| 4x10 | 18.2 | 770 | 1.83 | 52 |
| 4x16 | 20.9 | 1106 | 1.15 | 69 |
| 4x25 | 24.5 | 1468 | 0.727 | 90 |
| 4x35 | 27.2 | 1921 | 0.524 | 111 |
| 5x1.5 | 10.9 | 200 | 12.1 | 16.5 |
| 5x2.5 | 12.5 | 280 | 7.41 | 23 |
| 5x4 | 14.1 | 395 | 4.61 | 30 |
| 5x6 | 15.5 | 520 | 3.08 | 38 |
| 5x10 | 20.5 | 860 | 1.83 | 52 |
| 5x16 | 23.8 | 1300 | 1.15 | 69 |
| 5x25 | 26.8 | 1854 | 0.727 | 90 |
| 5x35 | 29.8 | 2435 | 0.524 | 111 |
