ALUMINUM CONDUCTIVE CABLES

PVC Insulated, Aluminium Power Cables (YAVV / NAYY)

These cables are used as utility and lighting cables, in underground indoor and outdoor installations where there is no great mechanical stress.
Max. operating temperature
70 °C
Max. short circuit temperature
160 °C
AC test voltage
3.5 kV
Min. bending radius
12 x D
Rated voltage Uo/U
0.6/1 kV
Flame propagation test on single cable
EN 60332-1
Lead Free
Lead Free

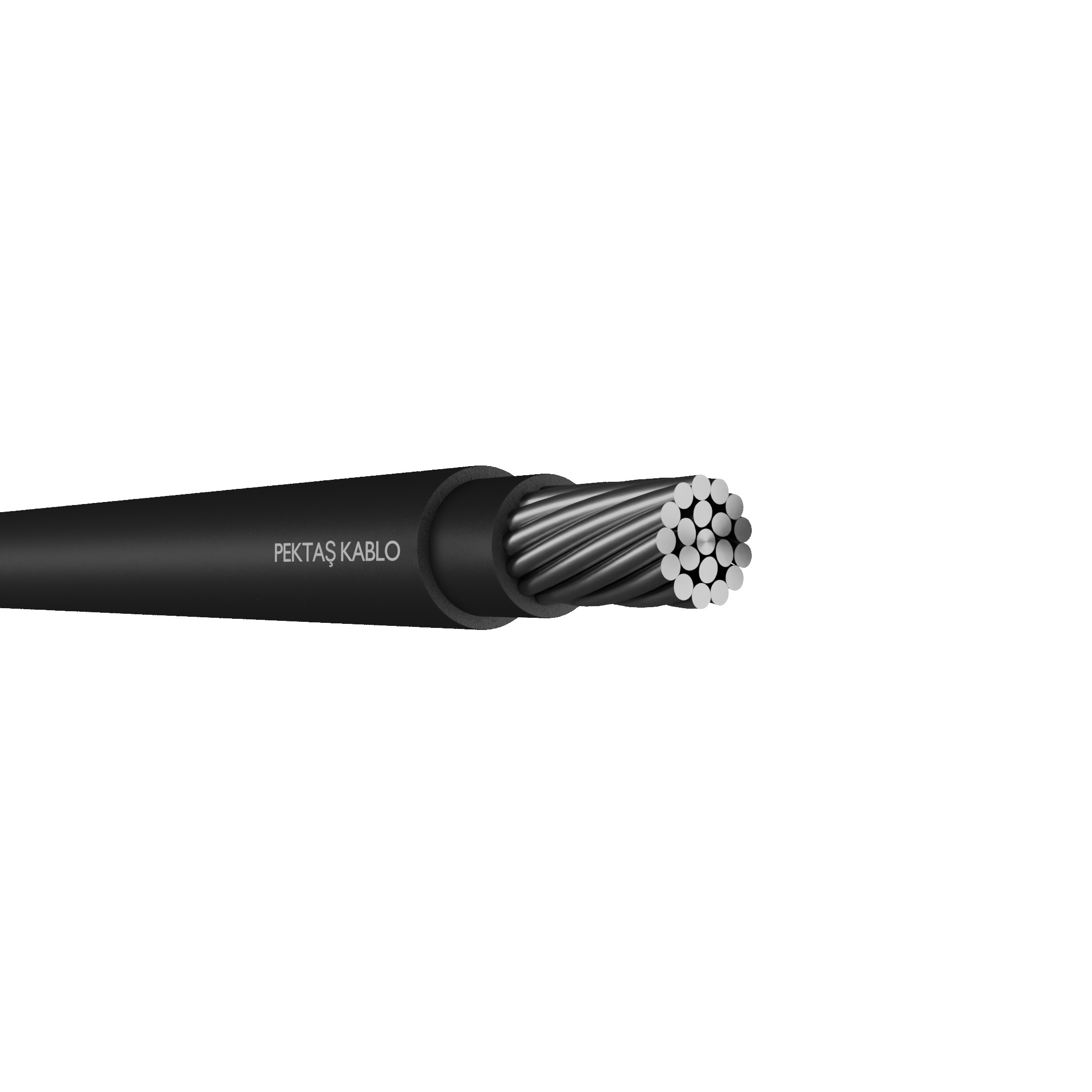

Construction

  • 1- Stranded aluminium
  • 2- Polyvinyl chloride (PVC)
  • 3- Polyvinyl chloride (PVC)

Applications

These cables are used as utility and lighting cables, in underground indoor and outdoor installations where there is no great mechanical stress.

Technical Data - YAVV / NAYY (0,6/1 kV) / AL/PVC/PVC

Nominal Cross Section mm²Overall Diameter mmNet Weight kg/kmConductor DC Resistance at (20°C) max. ohm/kmCurrent Carrying Capacity in Ground (Trefoil) (A)Current Carrying Capacity in Ground (Flat) (A)Current Carrying Capacity in Air (Trefoil) (A)Current Carrying Capacity in Air (Flat) (A)
1x169.31201.910----
1x2511.51741.2001251058775
1x3512.72130.868151127131113
1x5014.62770.641179151160138
1x7016.13550.443218186202174
1x9518.74760.320261223249210
1x12020.45680.253297254291244
1x15022.56970.206332285333281
1x18524.98470.164376323384320
1x24028.210750.125437278460378
1x30031.313900.100494427530433
2x1617.84501.910----
2x2522.26841.20099---
2x3524.68430.868113---
2x5028.611350.641138---
3x1618.95831.910----
3x2523.67691.2009983--
3x3526.29510.868118102--
3x5030.512770.641142124--
3x7034.016400.443176158--
3x9539.522090.320211190--
3x12042.926100.253242221--
3x15047.732410.206270252--
3x18552.939660.164308289--
3x24060.251000.125363339--
3x30067.065080.100412377--
4x1621.06351.910----
4x2526.19471.2009983--
4x3529.011720.868118102--
4x5033.815720.641142124--
4x7037.820390.443176158--
4x9543.827300.320211190--
4x12047.732450.253242221--
4x15054.041650.206270252--
4x18559.750650.164308289--
4x24068.065260.125363339--
4x30075.382300.100412377--
5x1625.29901.910----
5x2531.814231.2009983--
5x3535.417670.868118102--
3x16/1621.06351.91/1.91----
3x25/1625.08681.20/1.919983--
3x35/1627.610710.868/1.91118102--
3x50/2532.414360.641/1.20142124--
3x70/3536.018270.443/0.868176158--
3x95/5041.724360.320/0.641211190--
3x120/7045.939760.253/0.443242221--
3x150/7050.134820.206/0.443270252--
3x185/9556.244230.164/0.320308289--
3x240/12063.356120.125/0.253363339--
3x300/15070.371740.100/0.206412377--
