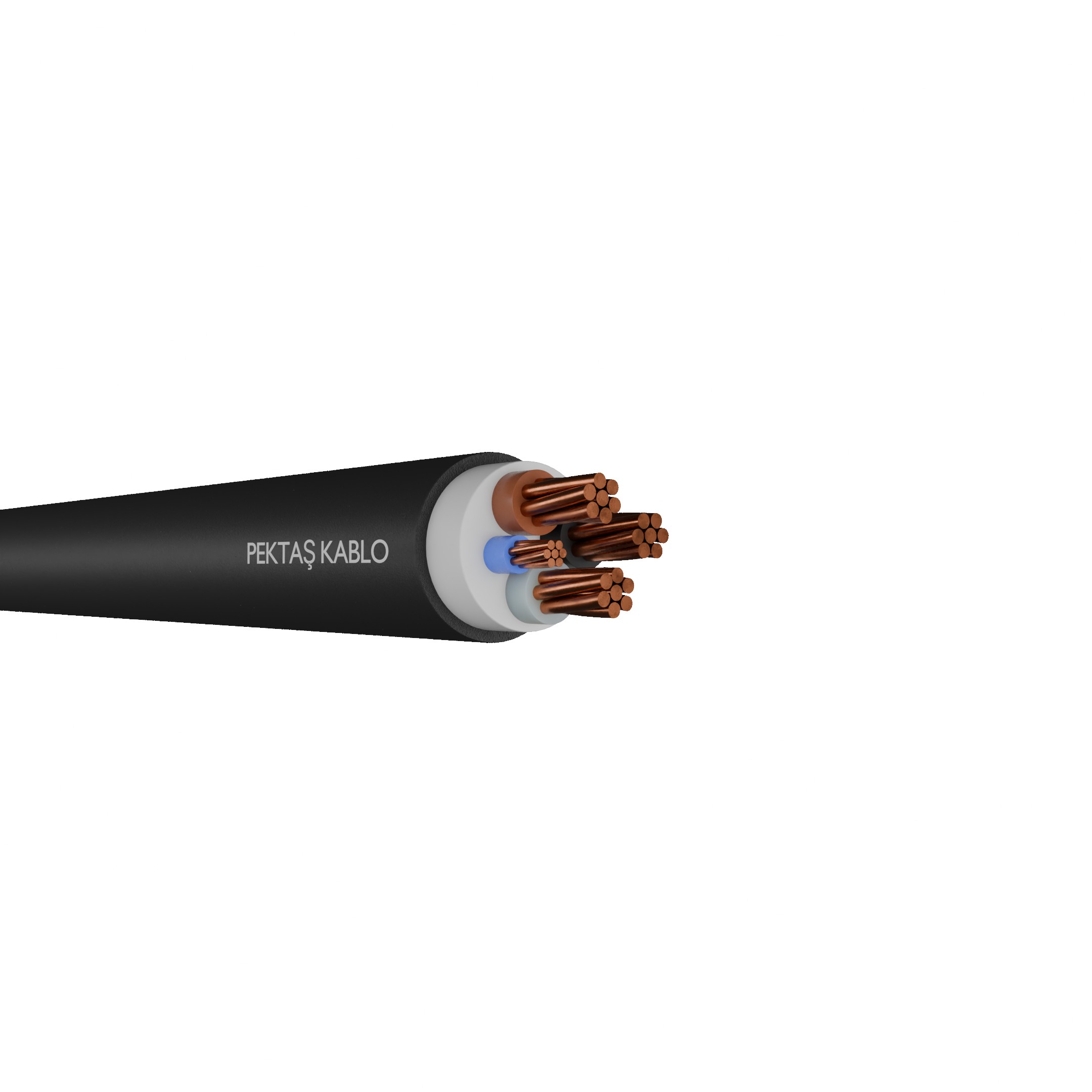

PVC Insulated Low Voltage Power Cable (NYY) - Pektas Cable

UNARMOURED ENERGY CABLES

YVV-U (NYY) , YVV-R (NYY)

Used in underground which there not much outer factors and inside cable conduits.

Max. operating temperature

70 °C

Max. short circuit temperature

160 °C

AC test voltage

3.5 kV

Min. bending radius

12 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1

Sensitivity

Lead Free

Construction

1- Solid or stranded copper (Class 1 or Class 2)
2- Polyvinyl chloride
3- Polyvinyl chloride
4- Polyvinyl chloride

Applications

Used in underground which there not much outer factors and inside cable conduits.

Technical Data - YVV-U (NYY) , YVV-R (NYY) (0,6/1 kV) / Cu/PVC/PVC/PVC

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
2x1.5	10.54	161	12.1	32	22
2x2.5	11.32	196	7.41	42	30
2x4	13.02	272	4.61	54	40
2x6	14.02	334	3.08	68	51
2x10	16.30	478	1.83	90	70
2x16	18.80	675	1.15	116	94
2x25	21.20	930	0.727	150	119
2x35	23.40	1196	0.524	181	148
3x1.5	10.80	177	12.1	27	19.5
3x2.5	11.90	229	7.41	36	25
3x4	13.70	322	4.61	47	34
3x6	14.80	403	3.08	59	43
3x10	17.50	596	1.83	79	59
3x16	19.50	813	1.15	102	79
3x25	22.60	1177	0.727	133	106
3x35	24.90	1521	0.524	159	129
3x50	28.80	2054	0.387	188	157
3x70	32.30	2792	0.268	232	199
3x95	37.10	3769	0.193	280	246
3x120	41.00	4675	0.153	318	285
3x150	44.50	5676	0.124	359	326
3x185	49.20	7033	0.0991	406	374
3x240	56.70	9215	0.0754	473	445
3x300	62.50	11662	0.0601	535	511
3x400	68.00	13500	0.0470	613	597
5x1.5	12.10	231	12.1	26	18.6
7x1.5	12.90	282	12.1	15.6	12.0
10x1.5	15.50	392	12.1	13	10.2
12x1.5	15.90	433	12.1	12.4	9.7
14x1.5	16.60	481	12.1	11.7	9.3
19x1.5	18.30	604	12.1	10.4	8.3
21x1.5	19.20	664	12.1	9.3	7.9
24x1.5	21.20	753	12.1	9.1	7.4
30x1.5	22.40	886	12.1	8.5	6.9
5x2.5	13.10	295	7.41	34	25
7x2.5	14.10	368	7.41	20	16.3
10x2.5	17.00	514	7.41	17	13.8
12x2.5	17.50	574	7.41	16.2	13.1
14x2.5	18.30	642	7.41	15.3	12.5
19x2.5	20.2	815	7.41	13.6	11.3
21x2.5	21.2	897	7.41	12.5	10.8
24x2.5	23.50	1020	7.41	11.9	10
30x2.5	24.8	1210	7.41	11.1	9.4
3x16+10	21.20	952	1.15/1.83	102	79
3x25+16	24.40	1363	0.727/1.15	133	106
3x35+16	26.80	1702	0.524/1.15	159	129
3x50+25	30.90	2310	0.387/0.727	188	157
3x70+35	34.40	3110	0.268/0.524	232	199
3x95+50	39.60	4209	0.193/0.387	280	246
3x120+70	43.90	5308	0.153/0.268	318	285
3x150+70	47.40	6253	0.124/0.268	359	326
3x185+95	52.40	7843	0.0991/0.193	406	374
3x240+120	59.90	10132	0.153/0.0754	473	445
3x300+150	64.50	12542	0.124/0.0601	535	511
3x400+185	75.00	16500	0.0470/0.0991	613	597
4x1.5	12.00	222	12.1	27	18.5
4x2.5	13.00	280	7.41	36	25
4x4	15.00	398	4.61	47	34
4x6	16.20	500	3.08	59	43
4x10	19.00	734	1.83	79	60
4x16	21.50	1026	1.15	102	80
4x25	24.90	1490	0.727	133	101
4x35	27.60	1947	0.524	159	126
4x50	31.90	2621	0.387	188	153
4x70	35.90	3586	0.268	232	199
4x95	41.20	4841	0.193	280	246
4x120	45.50	6004	0.153	318	285
4x150	50.80	7449	0.124	359	326
4x185	55.60	9186	0.0991	406	374
4x240	64.70	12147	0.0754	473	445
4x300	73.10	15482	0.0601	535	511
4x400	79.00	18500	0.0470	613	597
