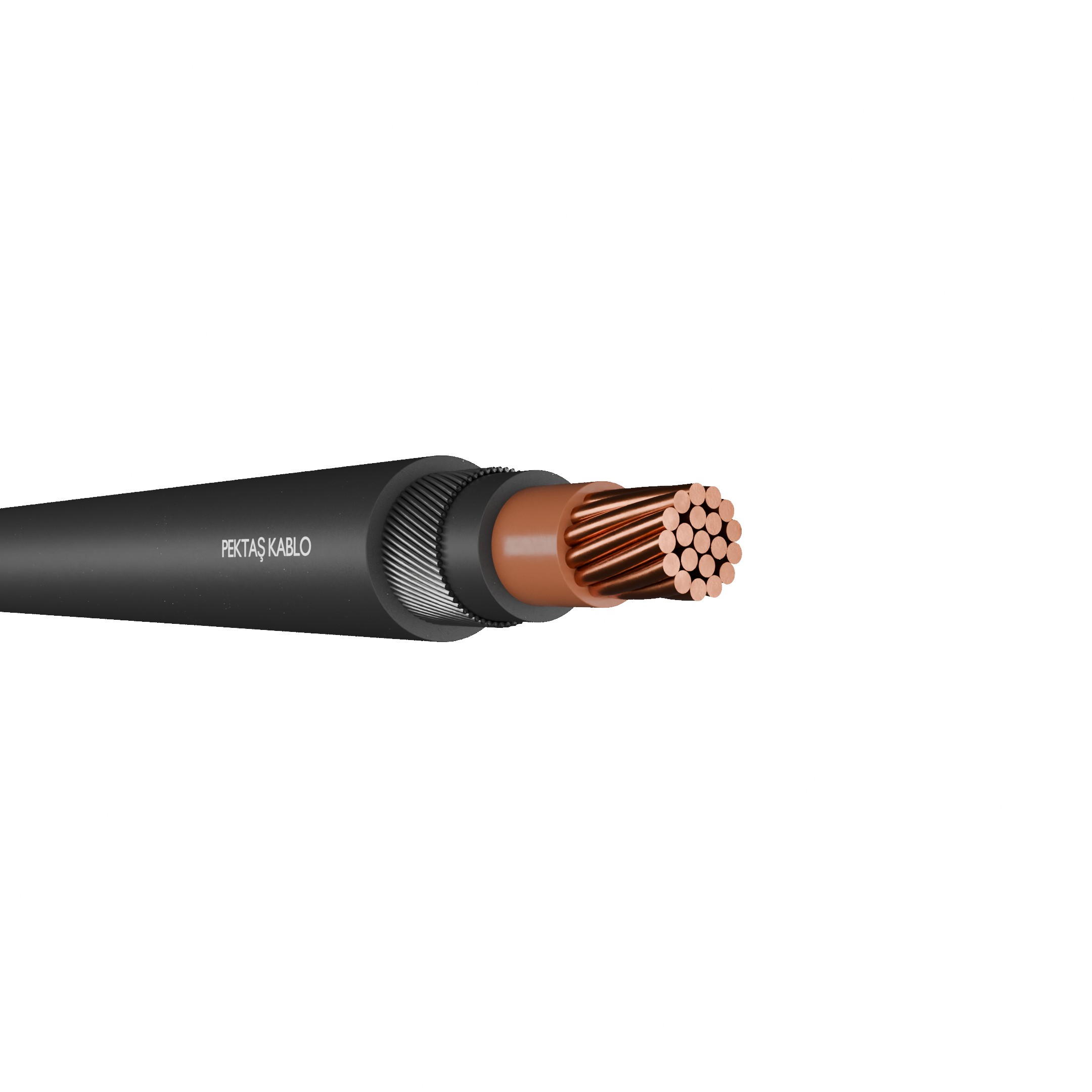

N2XRH / LSFSWA (AWA-SWA)

It is used in buildings with high human density, hospitals, shopping malls, hotels, schools, etc. It does not propagate fire, does not create thick smoke, and does not create an environment suitable for corrosion during a fire. The galvanized steel wire and tapes on it provide protection against mechanical stresses.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

3.5 kV

Min. bending radius

15 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

Flame propagation test on bunched cables

EN 60332-3-24

Corrosive gas test

EN 60754-2

Smoke density test

EN 61034-2

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Halogen-free material
4- Armor: Aluminum wire armor (AWA) for single core cables, Galvanized steel wire armor (SWA) for multi-core cables
5- Outer Sheath: Halogen-free lshz compound

Applications

Technical Data - N2XRH / LSFSWA (AWA-SWA)

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Current Carrying Capacity (In Earth)		Current Carrying Capacity (In Air)
Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance Max. ohm/km(20°C)	Flat	Trefoil	Flat	Trefoil
1x4	11,5	219	4,61	66	55	56	44
1x6	12,0	256	3,08	82	68	71	57
1x10	13	313	1,83	109	90	96	77
1x16	14	394	1,15	139	115	128	102
1x25	15,5	522	0,727	179	149	173	139
1x35	17,5	644	0,524	213	178	212	170
1x50	19	884	0,387	251	211	258	208
1x70	20,5	1141	0,268	307	259	328	265
1x95	23	1436	0,193	366	310	404	329
1x120	25	1726	0,153	416	352	471	381
1x150	26,5	2158	0,124	465	396	541	438
1x185	28,5	2628	0,0991	526	449	626	507
1x240	32,0	3464	0,0754	610	521	749	606
1x300	36	4204	0,0601	689	587	864	697
1x400	40,5	5036	0,0470	788	669	1018	816
1x500	45,5	5893	0,0366	889	748	1173	933
1x630	49,9	7267	0,0283	935	861	1266	1032
2x1,5	14,0	342	12,1	31		24
2x2,5	14,5	390	7,41	40		31
2x4	15,5	458	4,61	52		41
2x6	17,0	546	3,08	65		53
2x10	19,5	788	1,83	87		72
2x16	21,5	1012	1,15	113		96
2x25	26,0	1544	0,727	146		130
2x35	28,0	1836	0,524	176		160
2x50	30,5	2244	0,387	208		195
2x70	34,5	2896	0,268	256		247
2x95	38,5	3870	0,193	307		305
2x120	42,0	4626	0,153	349		355
2x150	45,5	5512	0,124	391		407
2x185	51,0	6990	0,0991	442		469
2x240	56,5	8716	0,0754	509		551
3x1,5	14,5	366	12,1	31		24
3x2,5	15,0	426	7,41	40		31
3x4	16,5	508	4,61	52		41
3x6	17,5	614	3,08	64		53
3x10	20,0	898	1,83	87		72
3x16	22,5	1172	1,15	113		96
3x25	27,0	1794	0,727	146		130
3x35	29,0	2162	0,524	176		160
3x50	32,0	2684	0,387	208		195
3x70	37,0	3722	0,268	256		247
3x95	40,5	4712	0,193	307		305
3x120	44,5	5692	0,153	349		355
3x150	49,5	7202	0,124	391		407
3x185	54,0	8598	0,0991	442		469
3x240	60,0	10812	0,0754	509		551
3x300	65,5	13052	0,0601	581		643
3x400	73,0	16	0,0470	667		737
3x25+16	30,0	2100	0,727/1,15	146		130
3x35+16	31,0	2440	0,524/1,15	176		160
3x50+25	35,0	3100	0,387/0,727	208		195
3x70+35	40,0	4230	0,268/0,524	256		247
3x95+50	44,0	5340	0,193/0,387	307		305
3x120+70	49,0	6600	0,153/0,268	349		355
3x150+70	53,0	8100	0,124/0,268	391		407
3x185+95	59,0	9800	0,0991/0,193	442		469
3x240+120	65,0	12250	0,0754/0,153	509		551
4x1,5	15,0	404	12,1	31		24
4x2,5	16,0	476	7,41	40		31
4x4	17,0	578	4,61	52		41
4x6	19,5	792	3,08	65		53
4x10	21,5	1042	1,83	87		72
4x16	24,5	1506	1,15	113		96
4x25	29,0	2128	0,727	146		130
4x35	31,5	2598	0,524	176		160
4x50	34,5	3242	0,387	208		195
4x70	40,0	4520	0,268	256		247
4x95	44,0	5780	0,193	307		305
4x120	49,5	7426	0,153	349		355
4x150	54,0	8840	0,124	391		407
4x185	59,0	10708	0,0991	442		469
4x240	66,0	13490	0,0754	509		551
4x300	72,0	16270	0601	581		643
5x1,5	16,0	448	12,1	31		24
5x2,5	17,0	532	7,41	40		31
5x4	19,0	742	4,61	52		41
5x6	20,5	900	3,08	65		53
5x10	23,0	1192	1,83	87		72
5x16	26,5	1756	1,15	113		96
5x25	31,5	2500	0,727	146		130
5x35	34,0	3068	0,524	176		160
5x50	38,5	4082	0,387	208		195
5x70	43,5	5410	0,268	256		247
5x95	49,5	7322	0,193	307		305
7x1,5	16,0	448	12,1	16		15,6
10x1,5	19,5	674	12,1	14		13,2
19x1,5	22,5	926	12,1	11		10,8
7x2,5	18,0	634	7,41	21		20,8
10x2,5	21,5	822	7,41	18		17,6
12x2,5	22,0	892	7,41	17		16
14x2,5	22,5	966	7,41	17		16
19x2,5	25,5	1288	7,41	15		14,4
30x2,5	30,0	1750	7,41	13		12,8
37x2,5	32,0	2024	7,41	12		11,2
