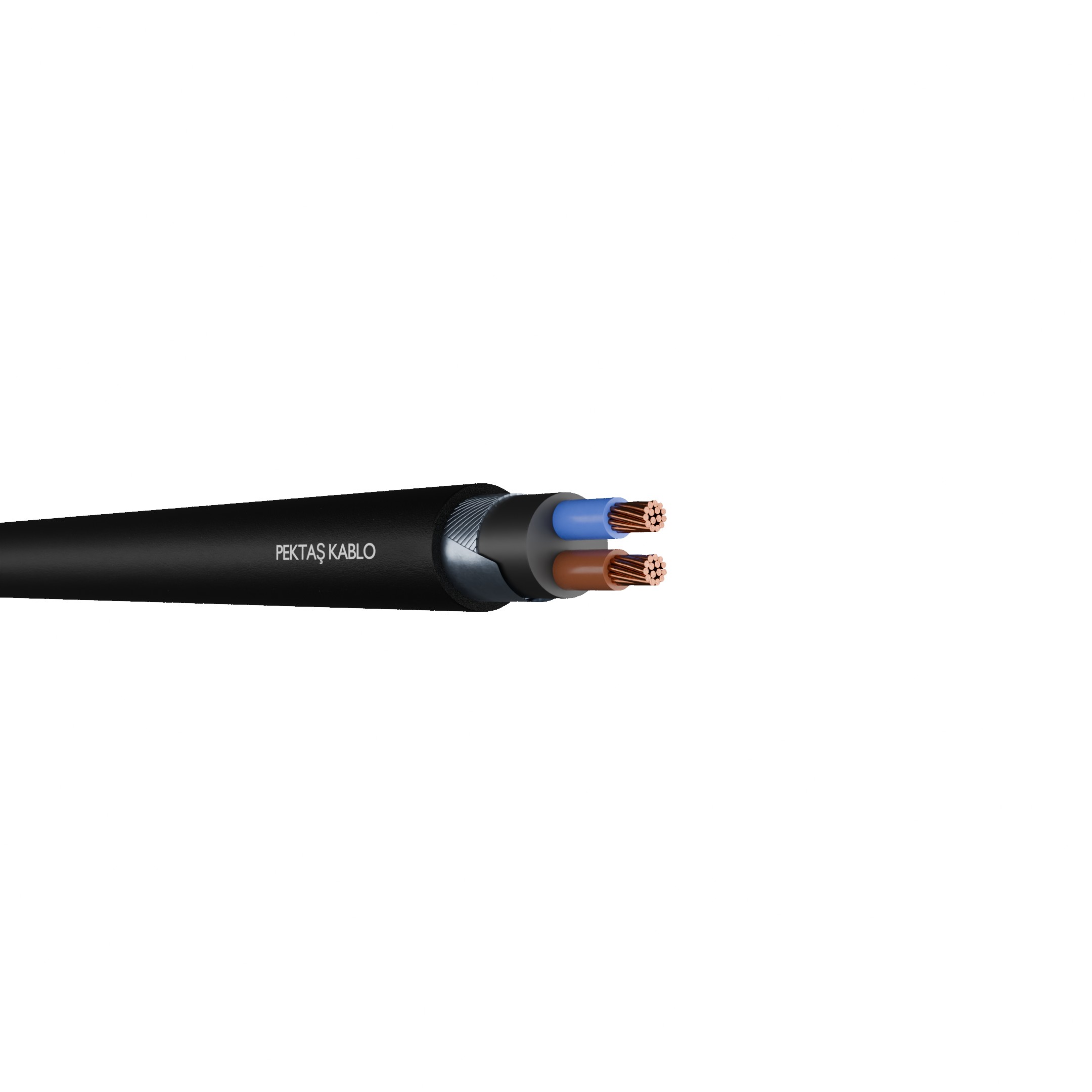

N2XFGbH

Name: N2XFGbH
Brand: Pektaş Kablo
SKU: n2xfgbh

It is used in buildings with high human density, hospitals, shopping malls, hotels, schools, etc. It does not propagate fire, does not create thick smoke, and does not create an environment suitable for corrosion during a fire. Galvanized flat steel wire and tapes on it provide extremely good protection against mechanical stresses.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

4 kV

Min. bending radius

15 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

Flame propagation test on bunched cables

EN 60332-3-24

Corrosive gas test

EN 60754-2

Smoke density test

EN 61034-2

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Halogen-free material
4- Armor: Galvanized flat steel wire and galvanized steel tape applied helically over it
5- Outer Sheath: Halogen-free lshz compound

Applications

Technical Data - N2XFGbH

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) Max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
2x10	17,9	626	1,83	87	72
2x16	20,1	832	1,15	113	96
2x25	22,7	1129	0,727	146	130
2x35	24,9	1389	0,524	176	160
2x50	27,5	1741	0,387	208	195
2x70	31,5	2304	0,268	256	247
2x95	36,3	3097	0,193	307	305
2x120	38,9	3642	0,153	349	355
2x150	42,9	4488	0,124	391	407
2x185	48,5	5505	0,0991	442	469
2x240	54,3	6966	0,0754	509	551
2x300	59,1	8473	0,0601	581	643
3x10	18,8	739	1,83	87	72
3x16	21,2	979	1,15	113	96
3x25	24,0	1379	0,727	146	130
3x35	26,4	1716	0,524	176	160
3x50	29,4	2189	0,387	208	195
3x70	33,7	2951	0,268	256	247
3x95	38,6	3936	0,193	307	305
3x120	41,6	4706	0,153	349	355
3x150	45,9	5804	0,124	391	407
3x185	52,1	7158	0,0991	442	469
3x240	58,1	9087	0,0754	509	551
3x300	63,3	11057	0,0601	581	643
3x16+10	22,1	1099	0,0470	667	737
3x25+16	25,1	1538	0,727/1,15	146	130
3x35+16	27,1	1886	0,524/1,15	176	160
3x50+25	30,4	2433	0,387/0,727	208	195
3x70+35	34,9	3287	0,268/0,524	256	247
3x95+50	39,9	4373	0,193/0,387	307	305
3x120+70	43,4	5328	0,153/0,268	349	355
3x150+70	47,0	6384	0,124/0,268	391	407
3x185+95	53,7	7976	0,0991/0,193	442	469
3x240+120	59,7	10084	0,0754/0,153	509	551
3x300+150	65,2	12339	0,0601/0,124	581	643
4x10	20,1	872	1,83	87	72
4x16	22,8	1173	1,15	113	96
4x25	25,9	1669	0,727	146	130
4x35	28,6	2095	0,524	176	160
4x50	32,1	2706	0,387	208	195
4x70	36,9	3693	0,268	256	247
4x95	42,6	4986	0,193	307	305
4x120	45,7	5921	0,153	349	355
4x150	50,6	7371	0,124	391	407
4x185	57,3	9030	0,0991	442	469
4x240	64,2	11525	0,0754	509	551
4x300	69,9	14161	0601	581	643
5x10	21,7	1020	1,83	87	72
5x16	24,6	1366	1,15	113	96
5x25	28,1	1958	0,727	146	130
5x35	31,3	2506	0,524	176	160
5x50	35,2	3257	0,387	208	195
5x70	40,5	4428	0,268	256	247
5x95	46,9	5983	0,193	307	305
5x120	50,5	7148	0,153	349	355
5x150	55,9	8894	0,124	391	407
5x185	63,4	10923	0,0991	442	469
5x240	71,1	14043	0,0754	509	551
5x300	77,6	17204	0,0601	581	643
