FIRE-RESISTANT CABLES

N2XCH FE 180

It is used as a power cable in systems that must operate during a fire and in areas with high human density; it does not emit toxic gas and does not propagate flame during a fire.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

4 kV

Min. bending radius

12 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

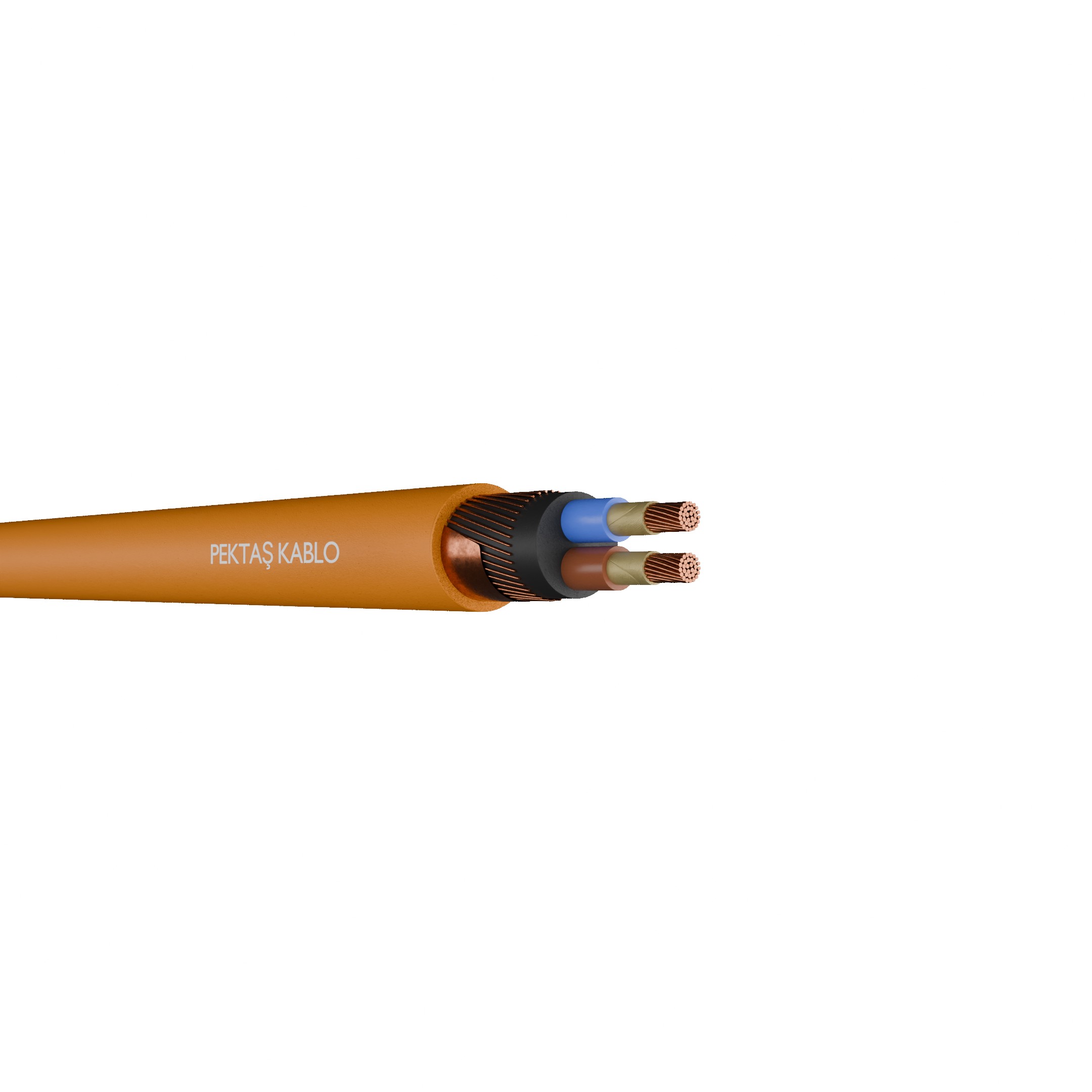

Construction

1- Conductor: Solid or stranded copper
2- Mica Tape
3- Insulation: Cross-linked polyethylene (XLPE)
4- Filler: Halogen-free lshz material
5- Concentric: Copper wire
6- Protection Tape: Polyester tape
7- Outer Sheath: Halogen-free polyolefin (LSHZ)

Applications

It is used as a power cable in systems that must operate during a fire and in areas with high human density; it does not emit toxic gas and does not propagate flame during a fire.

Technical Data - N2XCH FE 180

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) Max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
3x50/25	31,1	2172	0,387/0,727	205	195
3x70/35	35,4	3005	0,268/0,524	252	247
3x95/50	40,3	4073	0,193/0,387	303	305
3x120/70	43,3	4969	0,153/0,268	346	355
3x150/70	49,0	6227	0,124/0,268	390	407
3x185/95	54,3	7629	0,0991/0,193	441	469
3x240/120	60,4	9790	0,0754/0,153	511	551
3x300/150	66,3	11983	0,0601/0,124	581	643
4x1,5/1,5	14,0	257	12,1/12,1	30	24
4x2,5/2,5	15,0	318	7,41/7,41	40	32
4x4/4	16,4	412	4,61/4,61	52	42
4x6/6	17,6	532	3,08/3,08	65	53
4x10/10	21,8	808	1,83/1,83	86	73
4x16/16	24,5	1147	1,15/1,15	111	96
4x25/16	27,8	1604	0,727/1,15	143	130
4x35/16	31,4	2063	0,524/1,15	173	160
4x50/25	33,8	2681	0,387/0,727	205	195
4x70/35	38,6	3727	0,268/0,524	252	247
4x95/50	44,1	5069	0,193/0,387	303	305
4x120/70	47,6	6196	0,153/0,268	346	355
4x150/70	52,3	7602	0,124/0,268	390	407
4x185/95	59,7	9551	0,0991/0,193	441	469
4x240/120	66,4	12248	0,0754/0,153	511	551
4x300/150	72,9	16035	0,0601/0,124	581	643
5x1,5/1,5	15,0	298	12,1/12,1	30	24
5x2,5/2,5	16,1	371	7,41/7,41	40	32
5x4/4	17,7	485	4,61/4,61	52	42
5x6/6	18,9	626	3,08/3,08	64	53
5x10/10	23,5	957	1,83/1,83	86	73
5x16/16	26,7	1351	1,15/1,15	111	96
5x25/16	30,4	1883	0,727/1,15	143	130
5x35/16	34,2	2416	0,524/1,15	173	160
5x50/25	37,1	3162	0,387/0,727	205	195
5x70/35	42,4	4408	0,268/0,524	252	247
5x95/50	48,6	6004	0,193/0,387	303	305
5x120/70	52,4	7330	0,153/0,268	346	355
5x150/70	57,7	9036	0,124/0,268	390	407
5x185/95	65,8	11308	0,0991/0,193	441	469
5x240/120	73,3	14495	0,0754/0,153	511	551
5x300/150	80,6	17883	0,0601/0,124	581	643
7x1,5/1,5	16,0	340	12,1/12,1	18	15,5
7x2,5/2,5	17,2	430	7,41/7,41	24	21
9x1,5/1,5	19,0	429	12,1/12,1	15	13
9x2,5/2,5	20,5	542	7,41/7,41	20	17,5
10x1,5/1,5	19,6	463	12,1/12,1	15	13
10x2,5/2,5	21,2	588	7,41/7,41	20	17,5
12x1,5/1,5	20,2	517	12,1/12,1	14	12,5
12x2,5/2,5	21,9	664	7,41/7,41	19	17
14x1,5/1,5	21,0	573	12,1/12,1	13,5	12
14x2,5/2,5	23,0	753	7,41/7,41	18	16
15x1,5/1,5	22,0	607	12,1/12,1	13,5	12
15x2,5/2,5	24,1	798	7,41/7,41	18	16
19x1,5/1,5	23,0	713	12,1/12,1	12	11
19x2,5/2,5	25,2	948	7,41/7,41	16	14,5
21x1,5/1,5	24,2	774	12,1/12,1	12	9,5
21x2,5/2,5	26,5	1033	7,41/7,41	16	14,5
24x1,5/1,5	26,6	883	12,1/12,1	10,5	9,5
24x2,5/2,5	29,0	1166	7,41/7,41	14	13
27x1,5/1,5	27,2	955	12,1/12,1	10,5	9,59
27x2,5/2,5	29,6	1268	7,41/7,41	14	13
30x1,5/1,5	28,0	1039	12,1/12,1	10	9
30x2,5/2,5	30,8	1401	7,41/7,41	13	12
40x1,5/1,5	31,4	1328	12,1/12,1	9	8
40x2,5/2,5	34,3	1786	7,41/7,41	12	11
