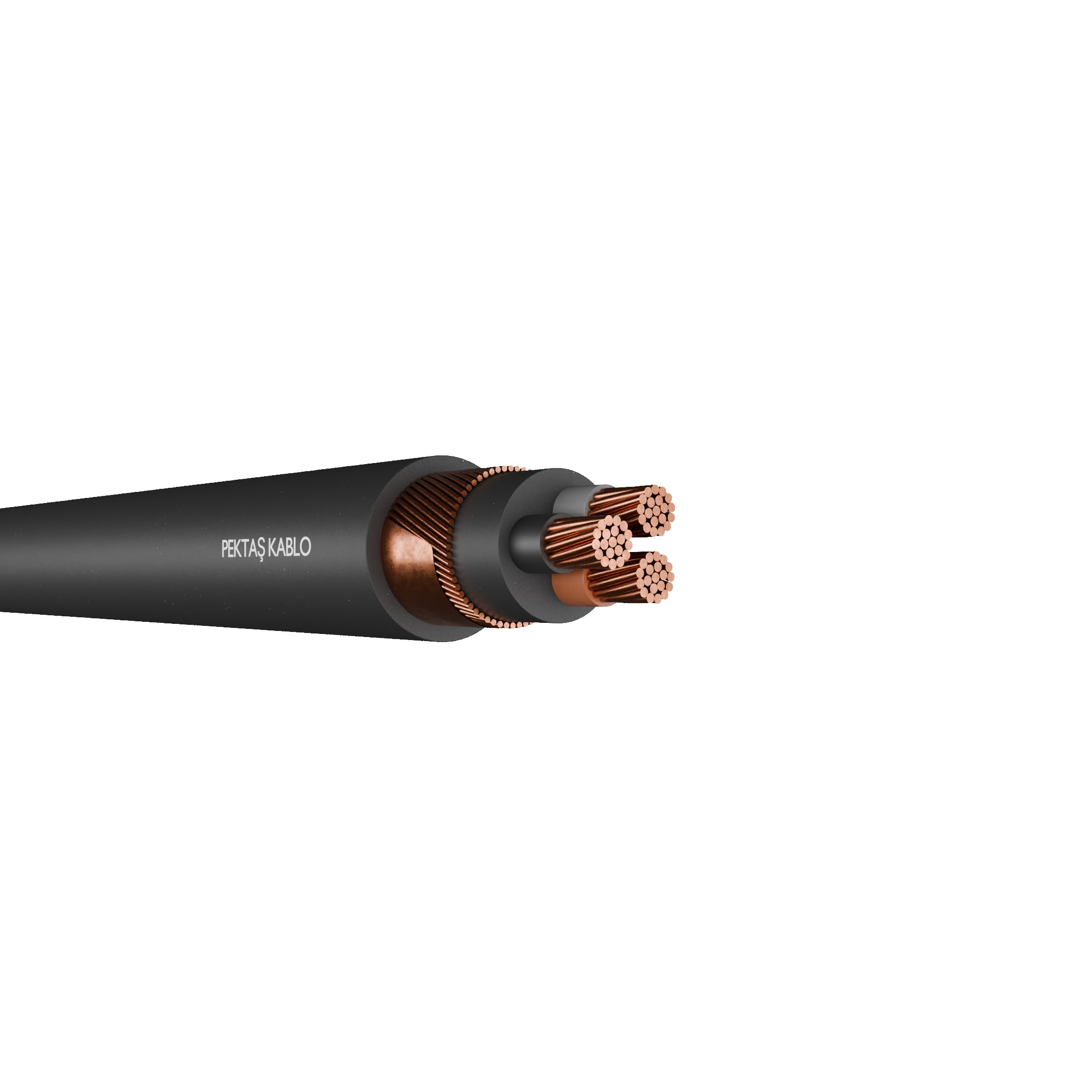

N2XCH

Name: N2XCH
Brand: Pektaş Kablo
SKU: n2xch

It is used in buildings with high human density, hospitals, shopping malls, hotels, schools, etc. It does not propagate fire, does not create thick smoke, and does not create an environment suitable for corrosion during a fire. Concentric conductors cause the switch or fuse connected to the network to open during any mechanical impact and cut the energy in the cable.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

4 kV

Min. bending radius

15 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

Flame propagation test on bunched cables

EN 60332-3-24

Corrosive gas test

EN 60754-2

Smoke density test

EN 61034-2

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Halogen-free material
4- Concentric: Copper wire, copper tape applied helically over it
5- Outer Sheath: Halogen-free lshz compound

Applications

Technical Data - N2XCH

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) Max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
3x1,5/1,5	12,0	172	12,1/12,1	31	24
3x2,5/2,5	12,5	212	7,41/7,41	40	31
3x4/4	13,5	272	4,61/4,61	52	41
3x6/6	15,0	348	3,08/3,08	65	53
3x10/10	16,5	490	1,83/1,83	87	72
3x16/10	19,0	700	1,15/1,83	113	96
3x25/16	22,0	1076	0,727/1,15	146	130
3x35/16	24,0	1398	0,524/1,15	176	160
3x50/25	28,0	1544	0,387/0,727	208	195
3x70/35	32,0	2600	0,268/0,524	256	247
3x95/50	36,0	3455	0,193/0,387	307	305
3x120/70	40,0	4320	0,153/0,268	349	355
3x150/70	45,0	5295	0,124/0,268	391	407
3x185/95	50,0	6620	0,0991/0,193	442	469
3x240/120	56,0	8595	0,0754/0,153	509	551
4x1,5/1,5	12,5	196	12,1/12,1	31	24
4x2,5/2,5	13,0	245	7,41/7,41	40	31
4x4/4	14,5	318	4,61/4,61	52	41
4x6/6	16,0	412	3,08/3,08	65	53
4x10/10	18,0	594	1,83/1,83	87	72
4x16/16	20,5	858	1,15/1,15	113	96
4x25/16	24,0	1326	0,727/1,15	146	130
4x35/16	27,0	1744	0,524/1,15	176	160
4x50/25	30	2290	0,387/0,727	208	195
4x70/35	35,5	3244	0,268/0,524	256	247
4x95/50	39,5	4344	0,193/0,387	307	305
4x120/70	44,5	5446	0,153/0,268	349	355
4x150/70	50,0	6760	0,124/0,268	391	407
4x185/95	55,0	8340	0,0991/0,193	442	469
4x240/120	62,0	10820	0,0754/0,153	509	551
5x1,5/1,5	13,0	222	12,1/12,1	31	24
5x2,5/2,5	14,0	282	7,41/7,41	40	31
5x4/4	15,5	370	4,61/4,61	52	41
5x6/6	17,0	484	3,08/3,08	65	53
5x10/10	19,0	704	1,83/1,83	87	72
5x16/16	22,5	1024	1,15/1,15	113	96
5x25/16	26,5	1590	0,727/1,15	146	130
5x35/16	29,0	2100	0,524/1,15	176	160
5x50/25	33,5	2822	0,387/0,727	208	195
5x70/35	39,0	3940	0,268/0,524	256	247
5x95/50	43,5	5286	0,193/0,387	307	305
5x120/70	49,5	6716	0,153/0,268	349	355
5x150/70	54,5	8224	0,124/0,268	391	407
5x185/95	61,0	10120	0,0991/0,193	442	469
5x240/120	68,0	13200	0,0754/0,153	509	551
7x1,5/1,5	13,5	251	12,1/12,1	18	15,5
10x1,5/1,5	16,4	334	12,1/12,1	15	13
12x1,5/1,5	16,8	372	12,1/12,1	14	12,5
14x1,5/1,5	17,5	413	12,1/12,1	13,5	12
19x1,5/1,5	19,0	525	12,1/12,1	12	11
24x1,5/1,5	22,9	711	12,1/12,1	10,5	9,5
30x1,5/1,5	24,0	825	12,1/12,1	10	9
40x1,5/1,5	27,0	1042	12,1/12,1	9	8
7x2,5/2,5	15,8	366	7,41/7,41	24	21
10x2,5/2,5	18,9	494	7,41/7,41	20	17,5
12x2,5/2,5	19,4	551	7,41/7,41	19	17
14x2,5/2,5	20,4	634	7,41/7,41	18	16
19x2,5/2,5	22,1	782	7,41/7,41	16	14,5
24x2,5/2,5	25,2	988	7,41/7,41	14	13
30x2,5/2,5	26,4	1158	7,41/7,41	13	12
40x2,5/2,5	29,9	1434	7,41/7,41	12	11
