LSZH Double Insulated Multi-Stranded 6381 B - Pektas Cable
FLAT AND CIRCULAR CABLES

6381 B

Installation in walls, on boards and in channels or embedded in plaster. Low level of smoke emission and corrosive gasses in case of fire.
Max. operating temperature
90 °C
Max. short circuit temperature
250 °C
AC test voltage
2.5 kV, 3.5 kV
Min. bending radius
≤ 25 mm² for 6 x D, > 25 mm² for 12 x D
Rated voltage Uo/U
450/750V, 600/1000V
Flame propagation test on single cable
EN 60332-1
Halogen free
EN 50525-1 - EN50267
Low smoke
EN 61034

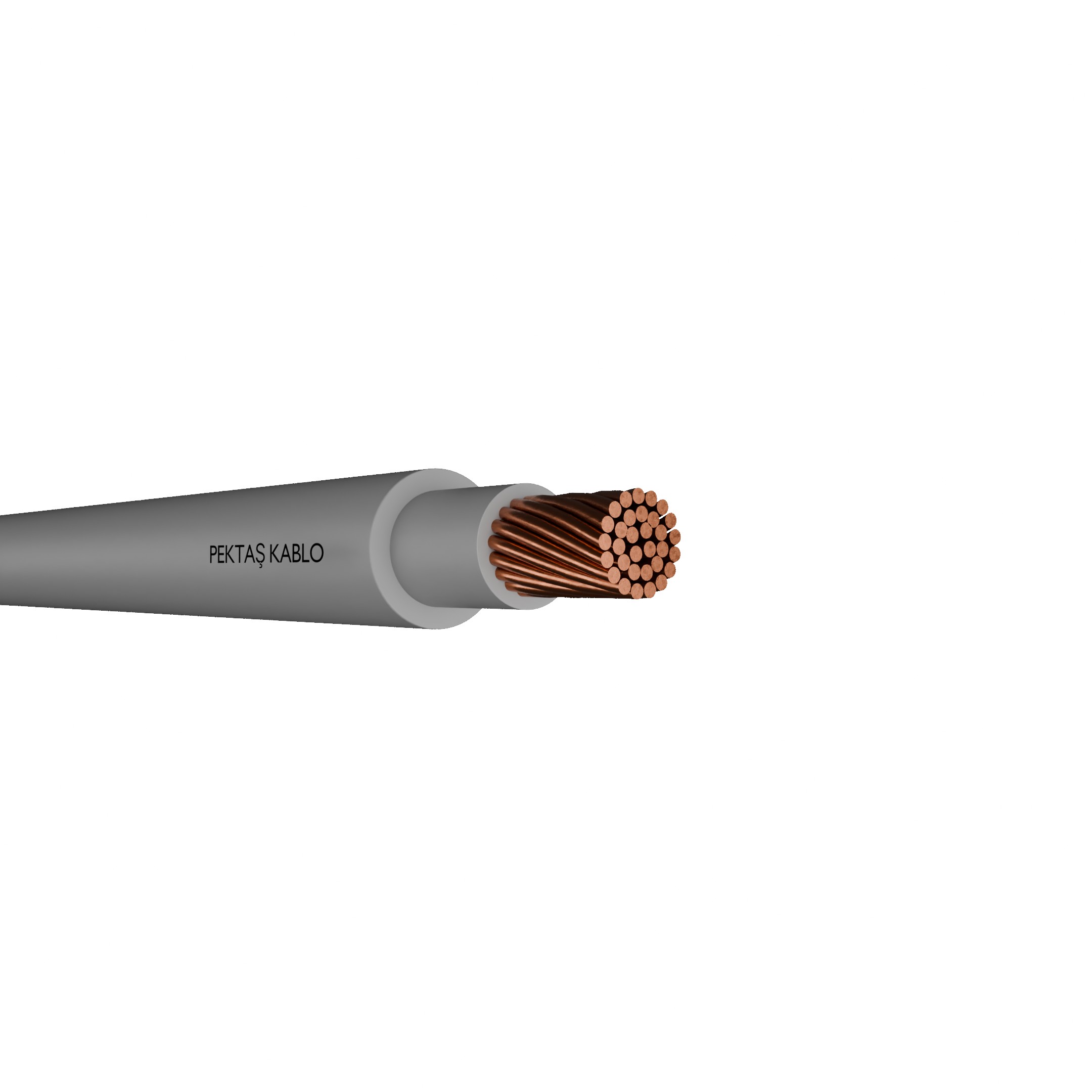

Construction

  • 1- Fine-stranded copper (Class 5)
  • 2- Cross linkable polyethylene
  • 3- Low smoke zero halogen

Applications

Installation in walls, on boards and in channels or embedded in plaster. Low level of smoke emission and corrosive gasses in case of fire.

Technical Data - 6381 B / Cu/XLPE/LSZH

Nominal Cross Section mm²Overall Diameter mmNet Weight kg/kmConductor DC Resistance at (20°C) max. ohm/kmCurrent Carrying Capacity in Conduit (A)
46.9814.9542
67.41033.3054
108.91571.9175
1610.12211.21100
2512.23300.780133
3513.44410.554164
5014.95660.386198
7016.67690.272253
9519.510280.206306
12020.612650.161354
15023.015580.129393
18526.219260.106449
24029.024710.0801528
30031.830680.0641603
40039.241490.0486683
