FIRE-RESISTANT CABLES

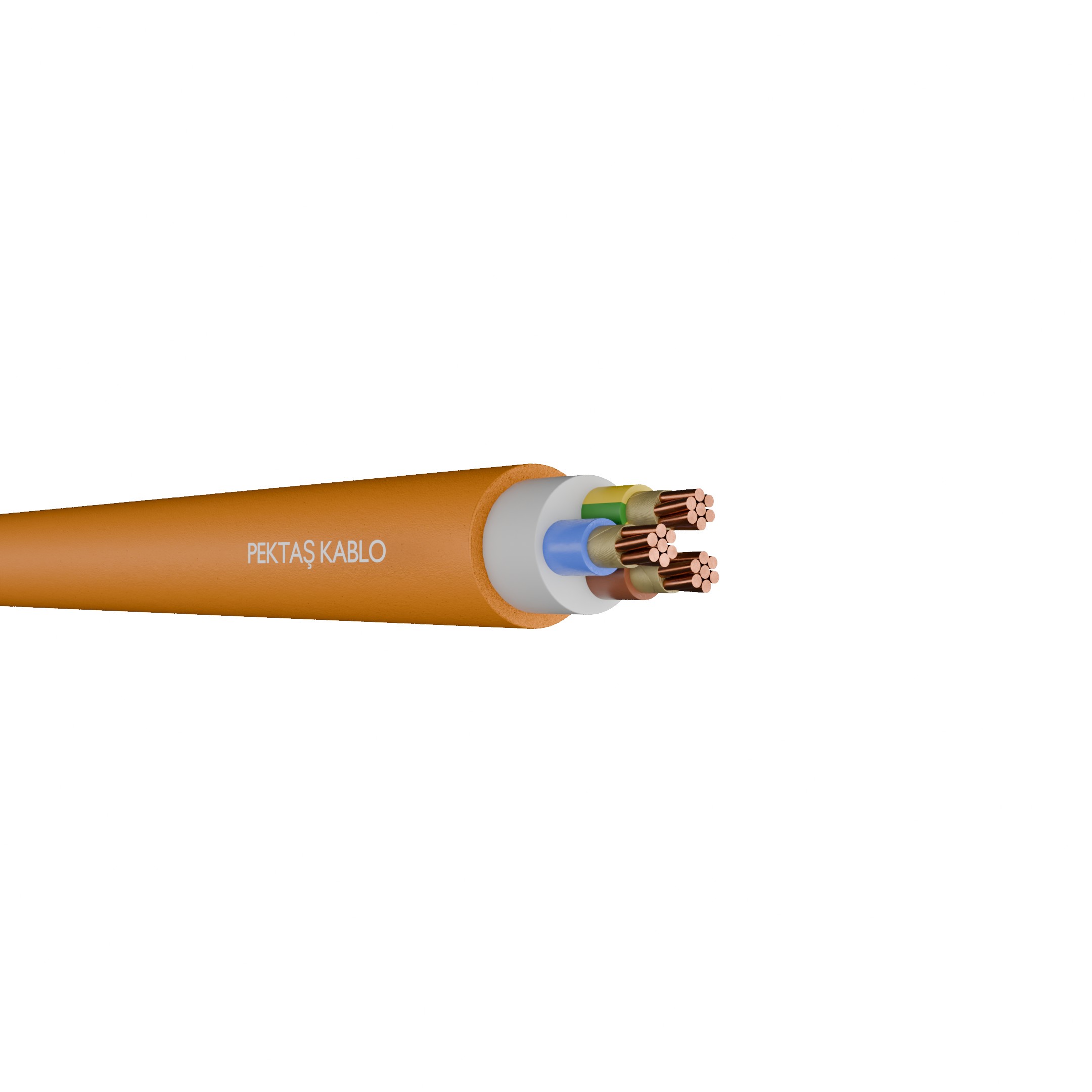

N2XH FE 180

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plats, data processing centers, populated business centers where there is a risk of fire.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

3.5 kV

Min. bending radius

15xD for <95 mm², 18xD for ≥95 mm²

Rated voltage Uo/U

0.6/1 kV

Flame retardant test of bunched cables

EN 60332-3-24 Cat. C

Low smoke

EN 61034

Halogen free

EN 50525-1 - EN 50267

Construction

1- Solid or stranded copper (Class 1 or Class 2)
2- Cross linkable polyethylene
3- Halogen free flame retardant
4- Halogen free flame retardant

Applications

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plats, data processing centers, populated business centers where there is a risk of fire.

Technical Data - N2XH (0,6/1 kV) / Cu/XLPE/HFFR/HFFR

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
2x1.5	9.1	117	12.1	30	24
2x2.5	9.9	147	7.41	40	32
2x4	10.4	179	4.61	52	42
2x6	11.9	248	3.08	64	53
2x10	14.3	358	1.83	86	73
2x16	16.4	532	1.15	111	96
2x25	19.2	776	0.727	143	130
2x35	21.6	1029	0.524	173	160
2x50	25.0	1388	0.387	205	195
3x1.5	9.6	135	12.1	30	24
3x2.5	10.5	175	7.41	40	32
3x4	11.4	232	4.61	52	42
3x6	12.5	303	3.08	64	53
3x10	15.7	490	1.83	86	73
3x16	17.3	673	1.15	111	96
3x25	20.5	1005	0.727	143	130
3x35	22.8	1328	0.524	173	160
3x50	26.5	1799	0.387	205	195
3x70	30.3	2510	0.268	252	247
3x95	34.3	3366	0.193	303	305
3x120	38.8	4263	0.153	346	355
3x150	42.2	5190	0.124	390	407
3x185	46.7	6440	0.0991	441	469
3x240	53.5	8397	0.0754	511	551
3x300	62.7	11048	0.0601	580	638
3x400	69.9	13862	0.0470	663	746
3x16+10	19.7	840	1.15/1.83	111	96
3x25+16	22.9	1230	0.727/1.15	143	130
3x35+16	25.1	1542	0.524/1.15	173	160
3x50+25	28.7	2086	0.387/0.727	205	195
3x70+35	32.5	2874	0.268/0.524	252	247
3x95+50	36.8	3850	0.193/0.387	303	305
3x120+70	41.5	4932	0.153/0.268	346	355
3x150+70	44.8	5813	0.124/0.268	390	407
3x185+95	48.8	7212	0.0991/0.193	441	469
3x240+120	56.9	9526	0.0754/0.153	511	551
3x300+150	61.3	11793	0.0601/0.124	580	638
4x1,5	10.4	162	12.1	30	24
4x2,5	11.3	210	7.41	40	32
4x4	12.6	292	4.61	52	42
4x6	13.9	386	3.08	64	53
4x10	16.8	598	1.83	86	73
4x16	19.2	860	1.15	111	96
4x25	22.5	1275	0.727	143	130
4x35	25.5	1719	0.524	173	160
4x50	29.1	2292	0.387	205	195
4x70	33.6	3233	0.268	252	247
4x95	37.8	4321	0.193	303	305
4x120	42.8	5473	0.153	346	355
4x150	46.8	6699	0.124	390	407
4x185	52.0	8341	0.0991	441	469
4x240	60.9	11067	0.0754	511	551
4x300	64.0	13220	0.0601	580	638
4x400	72.0	17080	0.0470	663	746
5x1,5	10.9	183	12.1	30	24
5x2,5	12.2	250	7.41	40	32
5x4	13.6	349	4.61	52	42
5x6	14.9	460	3.08	64	53
5x10	18.2	722	1.83	86	73
5x16	21.0	1052	1.15	111	96
5x25	25.0	1585	0.727	143	130
5x35	28.1	2121	0.524	173	160
5x50	32.2	2838	0.387	205	195
5x70	37.2	4008	0.268	252	247
5x95	42.0	5374	0.193	303	305
5x120	48.0	6897	0.153	346	355
5x150	52.0	8387	0.124	390	407
