NA2XRH Halogen Free Aluminium Armoured Power Cable - Pektas Cable
ALUMINUM CONDUCTIVE CABLES

Halogen Free, Flame Retardant, Round Steel Wire Armoured Aluminium Power Cables (NA2XRH)

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plats, data processing centers, populated business centers where there is a risk of fire.
Max. operating temperature
90 °C
Max. short circuit temperature
250 °C
AC test voltage
3.5 kV
Min. bending radius
12 x D
Rated voltage Uo/U
0.6/1 kV
Flame retardant test of bunched cables
EN 60332-3-24 Cat. C
Low smoke
EN 61034
Halogen free
EN 50525-1 - EN 50267

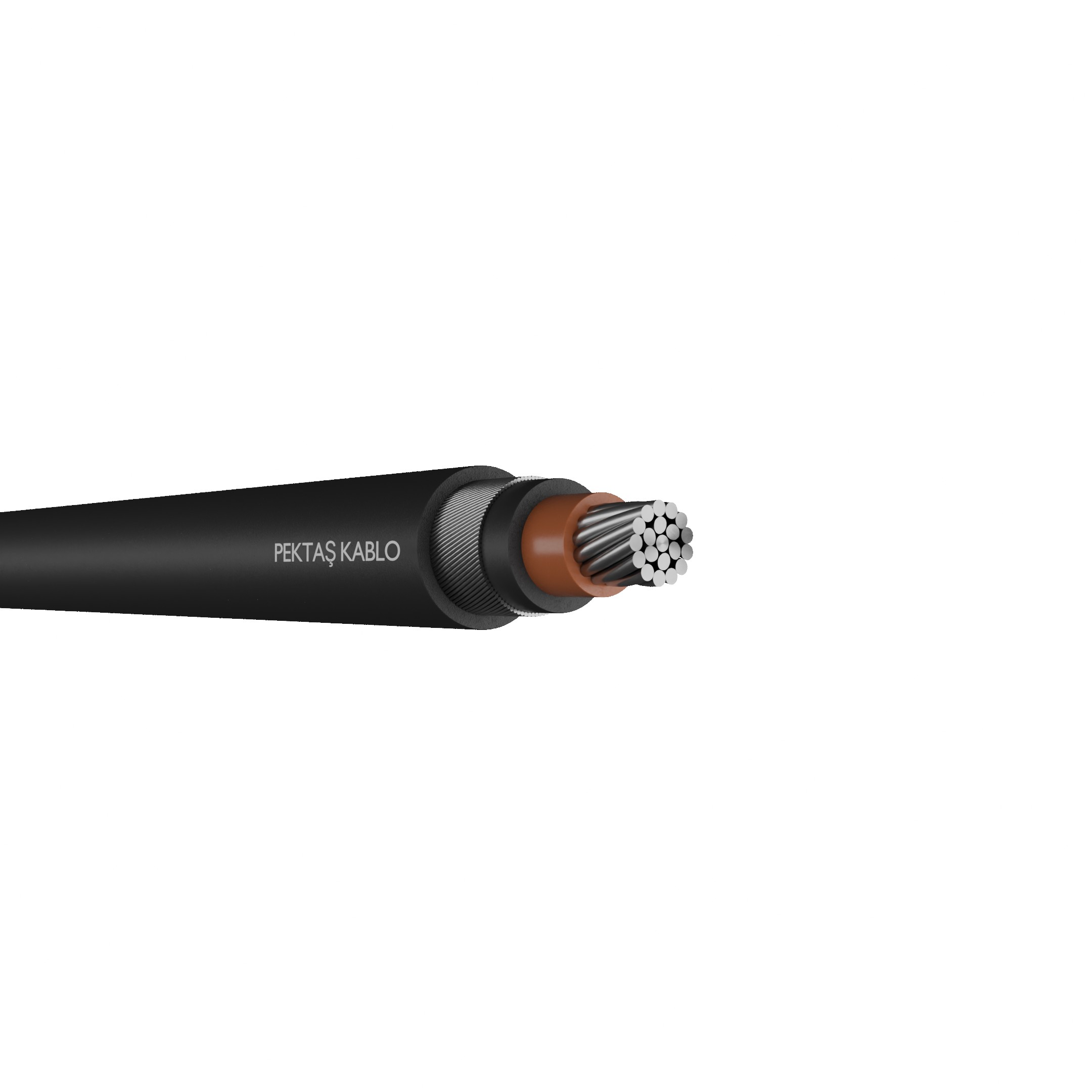

Construction

  • 1- Stranded aluminium (Class 2)
  • 2- Cross linkable polyethylene
  • 3- Halogen free flame retardant
  • 4- Galvanised round steel wire
  • 5- Halogen free flame retardant

Applications

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plats, data processing centers, populated business centers where there is a risk of fire.

Technical Data - NA2XRH (0,6/1 kV) / AL/XLPE/HFFR/SWA/HFFR

Nominal Cross Section mm²Overall Diameter mmNet Weight kg/kmConductor DC Resistance at (20°C) max. ohm/kmCurrent Carrying Capacity in Ground (A)Current Carrying Capacity in Air (A)
4x2529.116431.20111100
4x3532.219700.868132122
4x5037.727540.641157147
4x7043.036960.443195180
4x9548.245460.320233232
4x12052.252640.253266270
4x15057.762890.206299308
4x18566.985960.164340357
4x24074.0103340.125401435
5x1625.313141.94--
5x2531.919231.20111100
5x3536.125470.868132122
5x5042.335760.641157147
5x7047.543880.443195180
5x9554.155750.320233232
