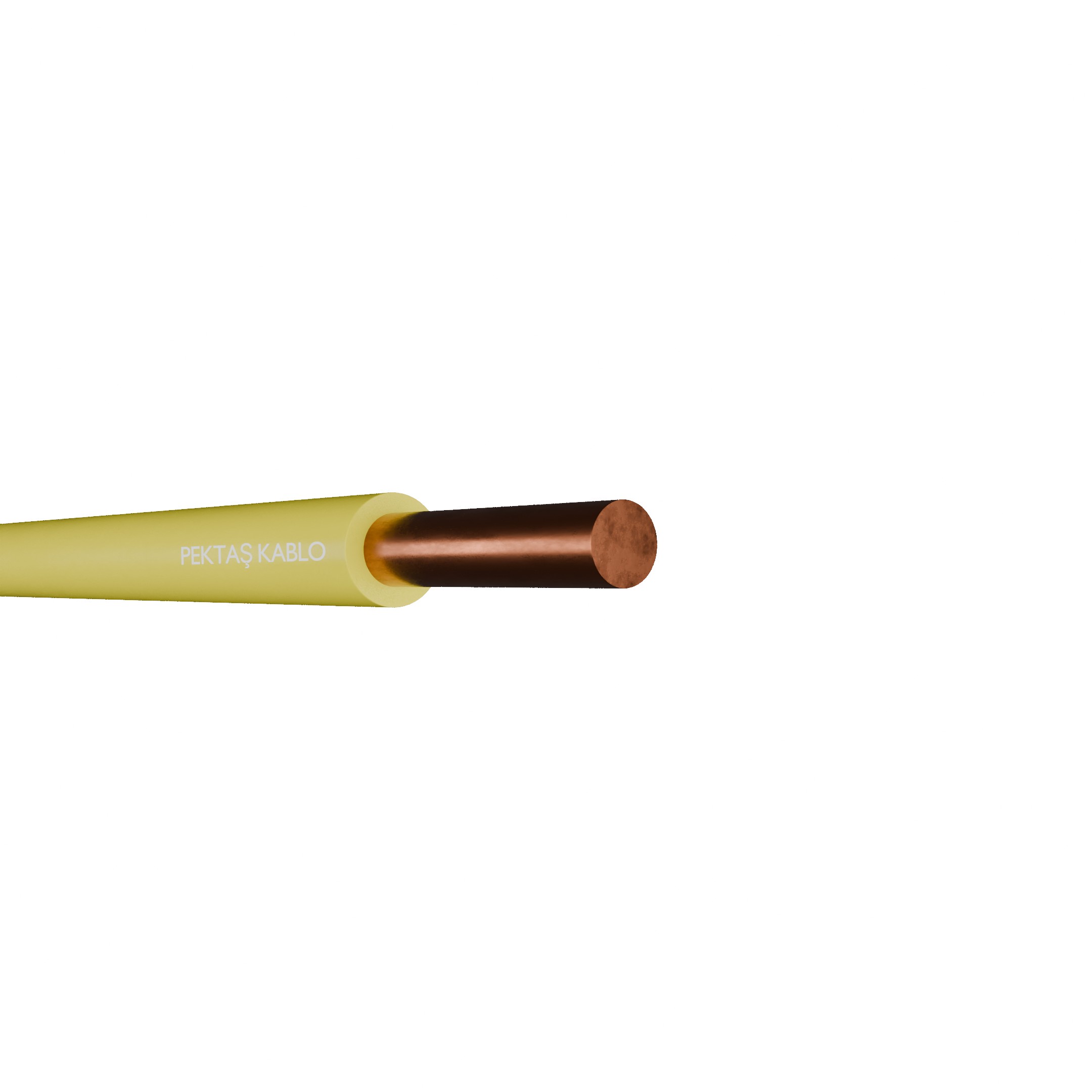

Heat resistant cables for internal wiring and switch, distribution boards.
| Nominal Cross Section mm² | Overall Diameter mm | Net Weight kg/km | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in Conduit (A) | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|---|
| 0.50 | 2.0 | 9 | 36.0 | - | 12 |
| 0.75 | 2.2 | 12 | 24.5 | - | 15 |
| 1 | 2.4 | 13 | 18.1 | - | 19 |
| 1.5 | 2.7 | 21 | 12.1 | 14.5 | 24 |
| 2.5 | 3.2 | 34 | 7.41 | 19.5 | 32 |
| 4 | 3.7 | 50 | 4.61 | 26 | 42 |
| 6 | 4.2 | 71 | 3.08 | 34 | 54 |
| 10 | 5.4 | 116 | 1.83 | 46 | 73 |
| 16 | 6.9 | 181 | 1.15 | 61 | 98 |
| 25 | 8.2 | 280 | 0.727 | 80 | 129 |
| 35 | 9.3 | 382 | 0.524 | 99 | 158 |
| 50 | 10.8 | 542 | 0.387 | 119 | 198 |
| 70 | 12.4 | 745 | 0.268 | 151 | 245 |
| 95 | 14.5 | 1010 | 0.193 | 182 | 292 |
| 120 | 15.9 | 1260 | 0.153 | 210 | 344 |
| 150 | 17.7 | 1575 | 0.124 | 240 | 391 |
| 185 | 19.8 | 1945 | 0.0991 | 273 | 448 |
| 240 | 22.8 | 2520 | 0.0754 | 320 | 528 |
| 300 | 25.2 | 2950 | 0.0601 | - | - |
| 400 | 31.2 | 3740 | 0.0470 | - | - |
| 500 | 35.6 | 4818 | 0.0366 | - | - |
| 630 | 37.6 | 6143 | 0.0283 | - | - |
