Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.
| Nominal Cross Section mm² | Overall Diameter mm | Net Weight kg/km | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in Conduit (A) |
|---|---|---|---|---|
| H03Z1Z1-F (300/300 V) | ||||
| 2x0.50 | 5.0 | 40 | 39.0 | 3 |
| 2x0.75 | 5.5 | 46 | 26.0 | 6 |
| 3x0.50 | 5.0 | 54 | 39.0 | 3 |
| 3x0.75 | 5.8 | 54 | 26.0 | 6 |
| 4x0.50 | 6.0 | 54 | 39.0 | 3 |
| 4x0.75 | 6.5 | 70 | 26.0 | 6 |

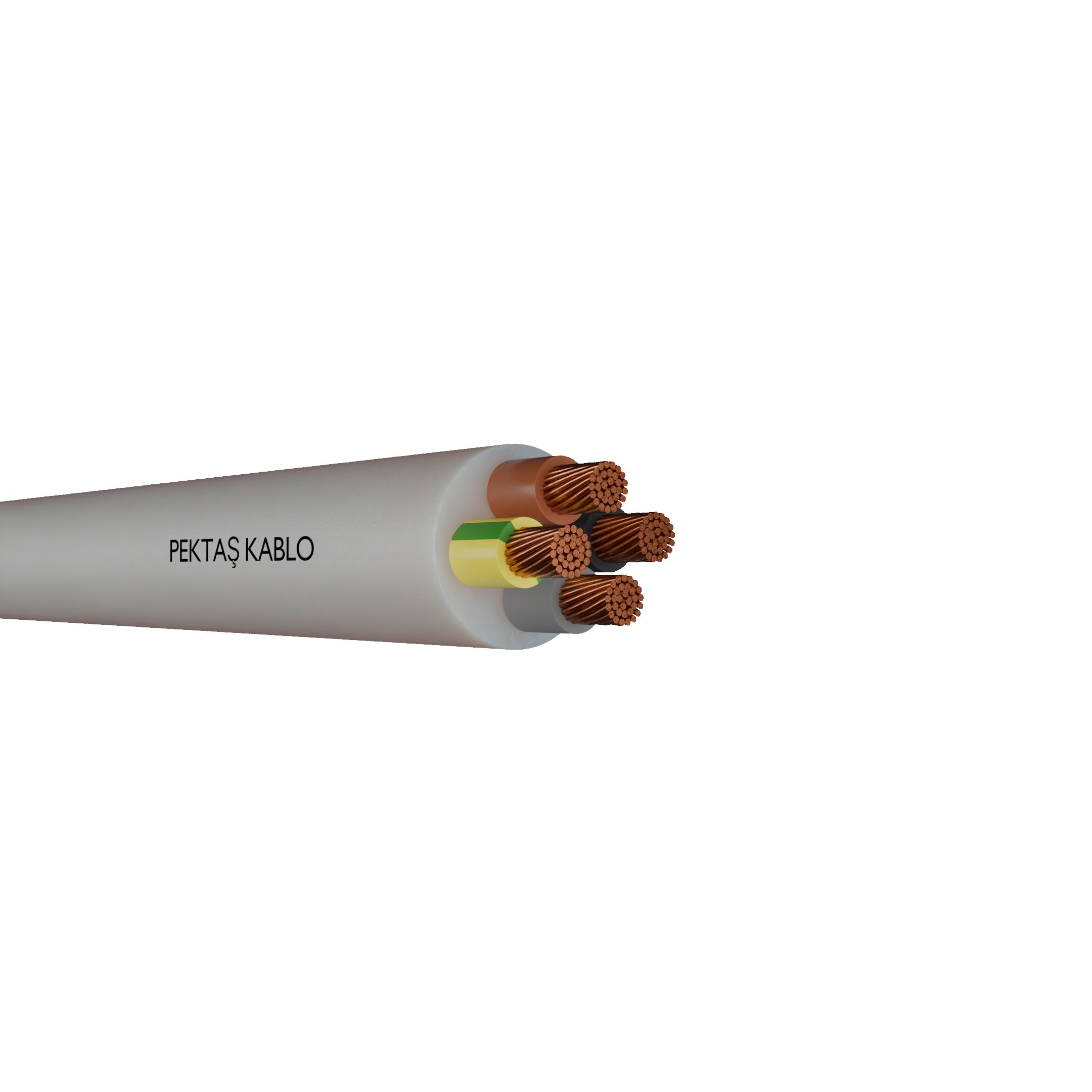

| H05Z1Z1-F (300/500 V) | ||||
| 2x1 | 6.6 | 65 | 19.5 | 10 |
| 2x1.5 | 7.5 | 90 | 13.3 | 16 |
| 2x2.5 | 9.0 | 140 | 7.98 | 25 |
| 3x0.75 | 6.7 | 68 | 26.0 | 6 |
| 3x1 | 7.0 | 78 | 19.5 | 10 |
| 3x1.5 | 8.1 | 107 | 13.3 | 16 |
| 3x2.5 | 9.6 | 163 | 7.98 | 25 |
| 3x4 | 11.2 | 230 | 4.95 | 32 |
| 4x0.75 | 7.3 | 85 | 26.0 | 6 |
| 4x1 | 7.9 | 101 | 19.5 | 10 |
| 4x1.5 | 9.1 | 141 | 13.3 | 16 |
| 4x2.5 | 11.0 | 201 | 7.98 | 25 |
| 5x0.75 | 8.1 | 104 | 26.0 | 6 |
| 5x1 | 8.8 | 124 | 19.5 | 10 |
| 5x1.5 | 10.2 | 175 | 13.3 | 16 |
| 5x2.5 | 12.6 | 260 | 7.98 | 25 |
| 5x4 | 14.1 | 364 | 4.95 | 32 |
