BS 6724 (AWA-SWA)

It does not propagate flame and does not create dense smoke during a fire in places where human density is high; armored power cables are used in all kinds of harsh construction sites and installations such as indoors, outdoors and underground where there are mechanical stresses.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

3.5 kV

Min. bending radius

12 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

Flame propagation test on bunched cables

EN 60332-3-24

Corrosive gas test

EN 60754-2

Smoke density test

EN 61034-2

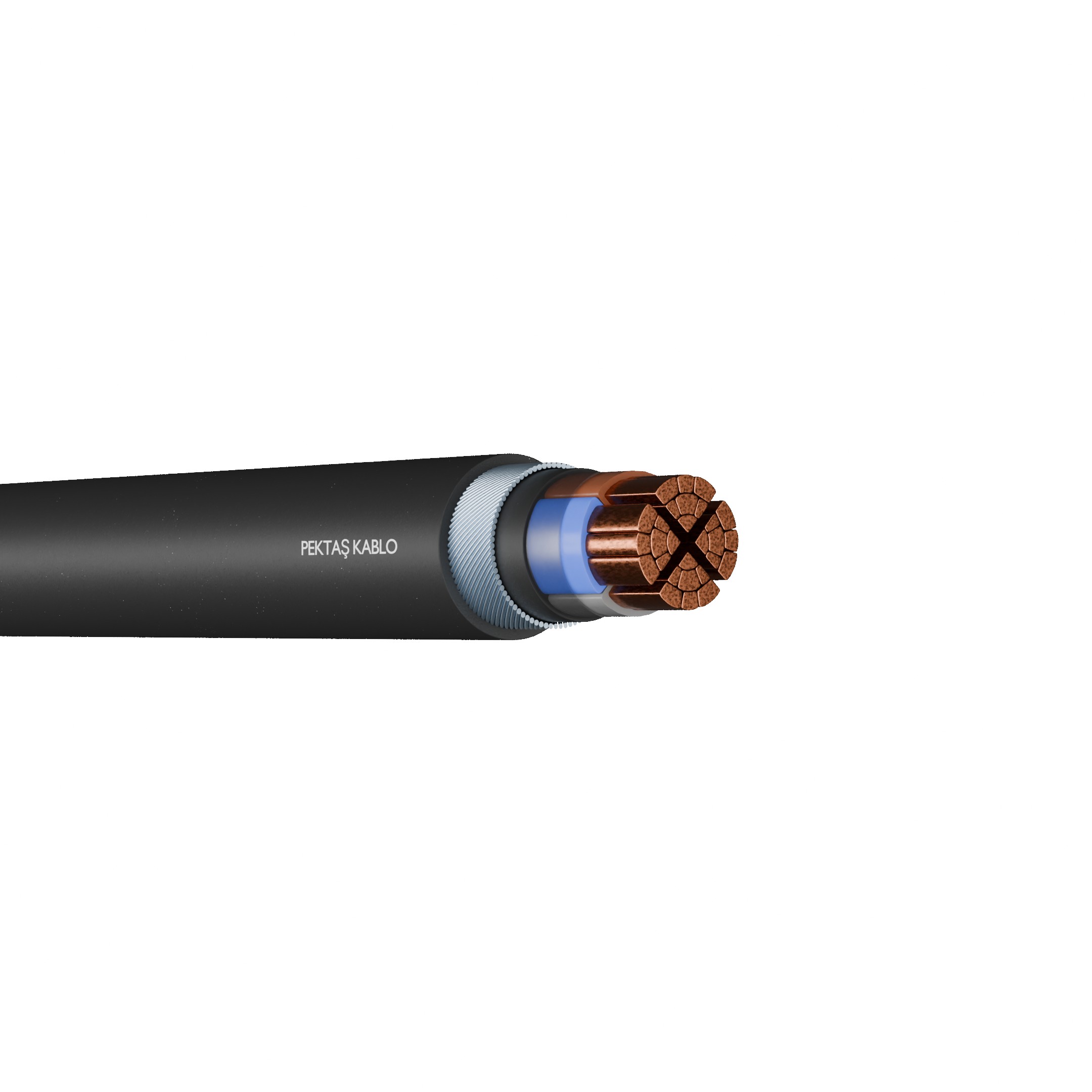

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Halogen-free lshz material
4- Armor: Aluminum wire armor (AWA) for single core cables, Galvanized steel wire armor (SWA) for multi-core cables
5- Outer Sheath: Halogen-free lshz compound

Applications

Technical Data - BS 6724 (AWA-SWA)

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) Max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
1x50	18,0	710	0,387	251	211	258	208
1x70	19,5	978	0,268	307	259	328	265
1x95	21,5	1257	0,193	366	310	404	329
1x120	23,9	1555	0,153	416	352	471	381
1x150	26,2	1908	0,124	465	396	541	438
1x185	28,5	2600	0,0991	526	449	626	507
1x240	31,5	3200	0,0754	610	521	749	606
1x300	33,0	3569	0,0601	689	587	864	697
1x400	39,8	4645	0,0470	788	669	1018	816
1x500	45,4	5893	0,0366	889	748	1173	933
1x630	49,9	7267	0,0283	1082	861	1474	1027
2x1,5	14,0	342	12,1	31	24
2x2,5	14,5	390	7,41	40	31
2x4	15,5	458	4,61	52	41
2x6	17,0	546	3,08	65	53
2x10	19,5	788	1,83	87	72
2x16	21,5	1012	1,15	113	96
2x25	26,0	1544	0,727	146	130
2x35	28,0	1836	0,524	176	160
3x1,5	14,5	366	12,1	31	24
3x2,5	15,0	426	7,41	40	31
3x4	16,5	508	4,61	52	41
3x6	17,5	614	3,08	65	53
3x10	20,0	898	1,83	87	72
3x16	22,5	1172	1,15	113	96
3x25	27,0	1794	0,727	146	130
3x35	29,0	2162	0,524	176	160
4x1,5	15,0	404	12,1	31	24
4x2,5	16,0	476	7,41	40	31
4x4	17,0	578	4,61	52	41
4x6	19,5	792	3,08	65	53
4x10	21,5	1042	1,83	87	72
4x16	24,5	1506	1,15	113	96
4x25	29,0	2128	0,727	146	130
4x35	31,5	2598	0,524	176	160
5x1,5	16,0	448	12,1	31	24
5x2,5	17,0	532	7,41	40	31
5x4	19,0	742	4,61	52	41
5x6	20,5	900	3,08	64	53
5x10	23,0	1192	1,83	86	72
5x16	26,5	1756	1,15	112	96
5x25	31,5	2500	0,727	145	130
5x35	34,0	3068	0,524	174	160
7x1,5	16,0	512	12,1	16	15,6
7x2,5	18,0	634	7,41	21	20,8
7x4	19,2	880	4,61	36	44
12x1,5	20,0	724	12,1	13	12
12x2,5	22,0	898	7,41	21	20,8
12x4	24,3	1347	4,61	36	44
19x1,5	22,5	926	12,1	11	10,8
19x2,5	25,5	1288	7,41	15	14,4
19x4	29,0	2030	4,61	36	44
4x35	28,1	2.180	0,524	115	162
4x50	31,0	2.770	0,387	135	197
4x70	36,9	3.980	0,268	167	251
4x95	40,5	5.080	0,193	197	304
4x120	47,3	6.610	0,153	223	353
4x150	49,6	7.940	0,124	251	406
4x185	54,0	9.570	0,0991	281	463
4x240	59,9	12.100	0,0754	324	546
4x300	64,7	14.800	0,0601	365	628
2x50	25,4	1.680	0,387	164	228
2x70	28,8	2.180	0,268	203	291
2x95	32,5	2.970	0,193	239	354
2x120	35,9	3.570	0,153	271	410
2x150	39,3	4.280	0,124	306	472
2x185	44,7	5.520	0,0991	343	539
2x240	49,2	6.680	0,0754	395	636
2x300	53,5	8.330	0,0601	446	732
3x50	27,6	2.200	0,387	135	197
3x70	31,3	2.900	0,268	167	251
3x95	35,7	3.970	0,193	197	304
3x120	38,7	4.780	0,153	223	353
3x150	43,9	6.200	0,124	251	406
3x185	47,7	7.430	0,0991	281	463
3x240	52,5	9.320	0,0754	324	546
3x300	57,1	11.400	0,0601	365	628
