BS 5467 (AWA-SWA)

Armored power cables are used in all kinds of harsh construction sites and installations such as indoor and outdoor underground places where there are mechanical stresses.

Max. operating temperature

90 °C

Max. short circuit temperature

250 °C

AC test voltage

3.5 kV

Min. bending radius

12 x D

Rated voltage Uo/U

0.6/1 kV

Flame propagation test on single cable

EN 60332-1-2

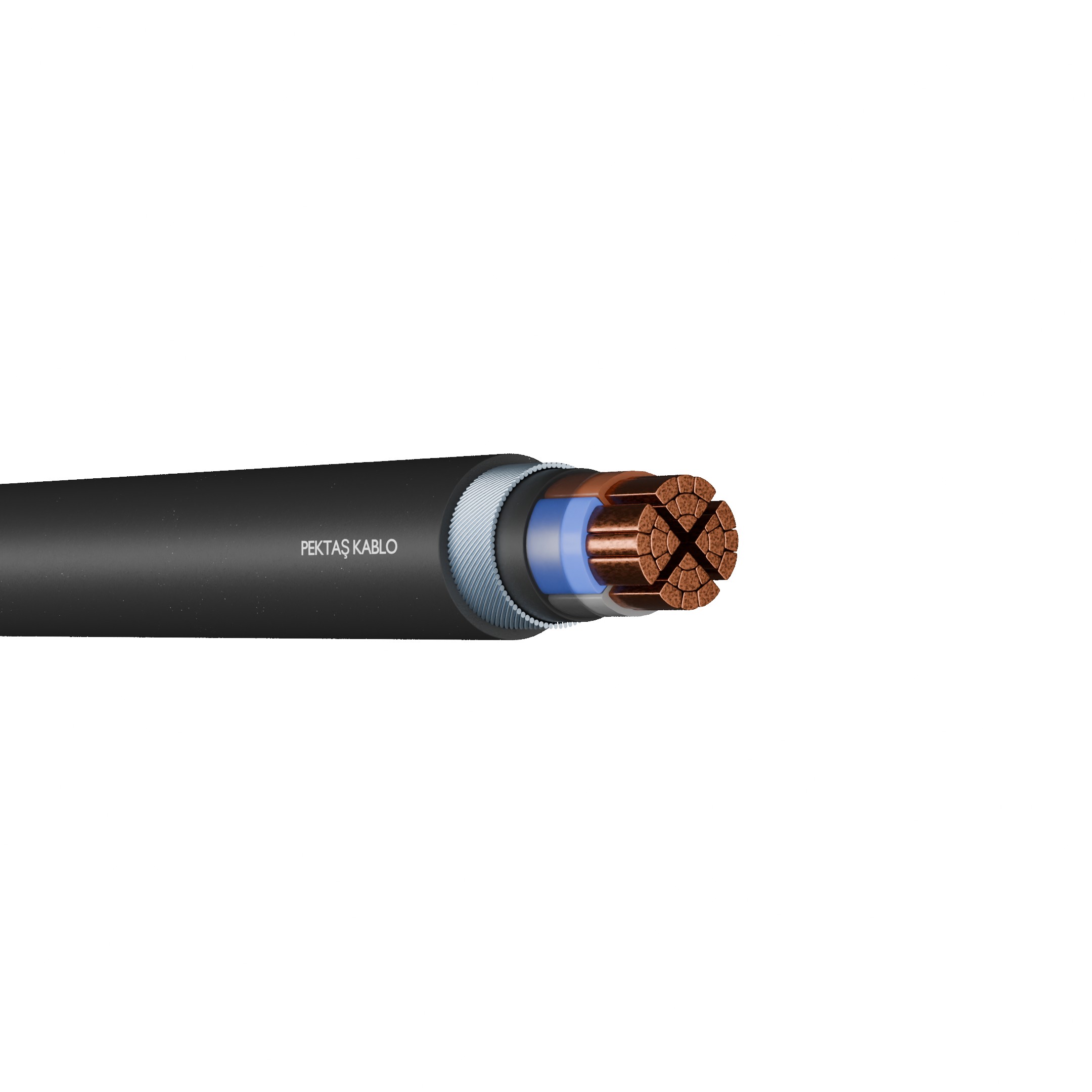

Construction

1- Conductor: Solid or stranded copper
2- Insulation: Cross-linked polyethylene (XLPE)
3- Filler: Polyvinyl chloride (PVC) (Only for multi-core cables)
4- Armor: Aluminum wire armor (AWA) for single core cables, Galvanized steel wire armor (SWA) for multi-core cables
5- Outer Sheath: Polyvinyl chloride (PVC)

Applications

Armored power cables are used in all kinds of harsh construction sites and installations such as indoor and outdoor underground places where there are mechanical stresses.

Technical Data - BS 5467 (AWA-SWA)

Nominal Cross Section mm²	Overall Diameter mm	Net Weight kg/km	Conductor DC Resistance at (20°C) Max. ohm/km	Current Carrying Capacity in Ground (A)	Current Carrying Capacity in Air (A)
1x50	18	707	0,387	211	218
1x70	20	929	0,268	257	275
1x95	21	1194	0,193	304	336
1x120	24	1504	0,153	341	388
1x150	26	1794	0,124	377	438
1x185	28	2180	0,0991	418	501
1x240	31	2769	0,0754	469	508
1x300	33	3351	0,0601	514	654
1x400	37	4342	0,0470	565	733
1x500	41	5475	0,0366	623	825
1x630	45	6937	0,0283	690	934
2x1,5	13	310	12,2	31	25
2x2,5	13,5	360	7,41	40	33
2x4	14,5	422	4,61	52	43
2x6	15,5	496	3,08	65	54
2x10	18	772	1,83	87	75
2x16	20	980	1,15	113	100
2x25	24,5	1530	0,727	146	136
2x35	27	1835	0,524	176	165
3x1,5	13	334	12,1	31	25
3x2,5	14	390	7,41	40	33
3x4	15	472	4,61	52	43
3x6	16	560	3,08	65	54
3x10	19	875	1,83	87	75
3x16	21	1130	1,15	113	100
3x25	26	1790	0,727	146	136
3x35	28	2190	0,52	176	165
4x1,5	14	374	12,1	31	25
4x2,5	15	440	7,41	40	33
4x4	16	536	4,61	52	43
4x6	18	784	3,08	65	54
4x10	20	1015	1,83	87	75
4x16	23	1470	1,15	113	100
4x25	28	2125	0,727	146	136
4x35	31	2600	0,524	176	165
5x1,5	15	412	12,1	31	25
5x2,5	16	495	7,41	40	33
5x4	18	742	4,61	52	43
5x6	19	880	3,08	65	54
5x10	22	1170	1,83	87	75
5x16	25	1700	1,15	113	100
5x25	30	2450	0,727	146	136
5x35	33	3030	0,524	176	165
7x1,5	16,0	432	12,1	18,6	16,3
12x1,5	20,0	746	12,10	14,0	12,5
19x1,5	22,0	878	12,10	12,4	11,3
7x2,5	18,0	601	7,41	24,6	21,5
12x2,5	21,0	849	7,41	18,5	16,5
19x2,5	26,0	1300	7,41	16,4	14,9
7x4	20,9	964	4,61	31,2	27,3
12x4	23,8	1405	4,61	24,7	22,1
19x4	27,8	1922	4,61	20,8	18,9
2x50	25,4	1.680	0,387	164	228
2x70	28,8	2.180	0,268	203	291
2x95	32,5	2.970	0,193	239	354
2x120	35,9	3.570	0,153	271	410
2x150	39,3	4.280	0,124	306	472
2x185	44,7	5.520	0,0991	343	539
2x240	49,2	6.680	0,0754	395	636
2x300	53,5	8.330	0,0601	446	732
3x50	27,6	2.200	0,387	135	197
3x70	31,3	2.900	0,268	167	251
3x95	35,7	3.970	0,193	197	304
3x120	38,7	4.780	0,153	223	353
3x150	43,9	6.200	0,124	251	406
3x185	47,7	7.430	0,0991	281	463
3x240	52,5	9.320	0,0754	324	546
3x300	57,1	11.400	0,0601	365	628
4x35	28,1	2.180	0,524	115	162
4x50	31,0	2.770	0,387	135	197
4x70	36,9	3.980	0,268	167	251
4x95	40,5	5.080	0,193	197	304
4x120	47,3	6.610	0,153	223	353
4x150	49,6	7.940	0,124	251	406
4x185	54,0	9.570	0,0991	281	463
4x240	59,9	12.100	0,0754	324	546
4x300	64,7	14.800	0,0601	365	628
